Shop EVERFLO

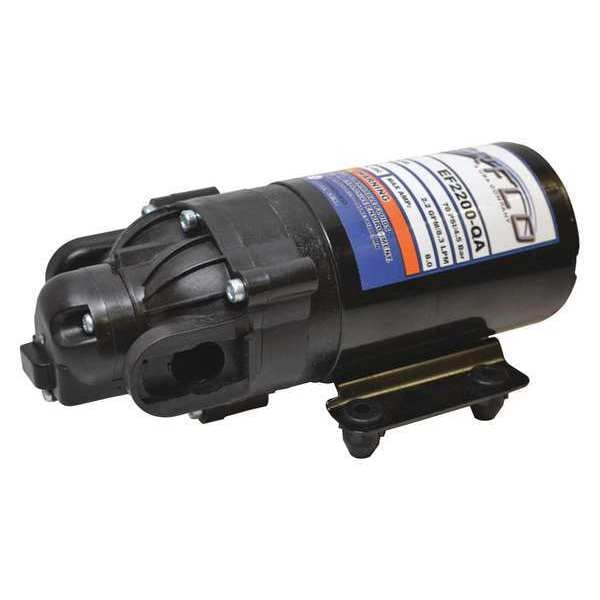

Electric Sprayer Pump, Inlet/Outlet 3/4" QC, Polypropylene, Viton

  • Mfr # EF2200-QA-BOX

  • Zoro # G2117199

product price:  $82.89
/ea

Key Features

Housing Material - Pumps
Polypropylene
Valve Material
Viton®
Diaphragm Material
Santoprene
Media Temperature (Maximum)
140 Degrees F
Operating Pressure (Maximum)
70 psi
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
EF2200-QA-BOX
Zoro #
G2117199
UPC #
814485013789
Country of Origin
China

Dimensions

Overall Length
8.5 in
Overall Height
3.6 in
Overall Width
4 in
Media Discharge Connection Size
3/4 in
Media Intake Connection Size
3/4 in
Intake Connection Size
3/4 in
Discharge Connection Size
3/4 in
Discharge Diameter
3/4 in
Inlet Diameter
3/4 in
Wire Rope Length
8.5 in

Details

Item
Electric Sprayer Pump
Housing Material - Pumps
Polypropylene
Valve Material
Viton®
Diaphragm Material
Santoprene
Media Temperature (Maximum)
140 Degrees F
Operating Pressure (Maximum)
70 psi
Prime in Feet
8
Fuse Amps
8 A
Pressure Switch
Yes
Motor Type
Totally enclosed Nonventilated
Features
Glyphosate Compatible, Honeywell(TM) Micro-Switch
Diaphragm Design
Three Chamber
Agency Compliance
CE
Inlet/Outlet
3/4 in QC
Pressure On
67 psi
Includes
Zinc-Plated Steel Fasteners
Type
Diaphragm
Pressure Off
70 psi
Pump Operation Type
Electric
Standards
CE Certified
Current
8 A
Flow Rate (Maximum)
2.2 gpm
Flow Rate @ 40 psi
1.58 gpm
Flow Rate @ 60 psi
1.4 gpm
Priming
Self-Priming
Feet of Head (Maximum)
95 ft
Series
EF2200
Flow Rate @ 0 psi
2.2 gpm
Flow Rate @ 20 psi
1.84 gpm
Diaphragm Chamber Design
3
Nameplate Voltage
12V DC
Motor Enclosure
Totally Enclosed Non-Ventilated
Media Discharge Connection Type
Quick Connect
Media Intake Connection Type
Quick Connect
Housing Material
Polypropylene
Discharge Connection Type
Quick Connect
Intake Connection Type
Quick Connect
Check Valve Material
FKM
Includes Motor Power Switch
No Motor Power Switch Included
Includes Regulator
No Regulator Included
Pumping Application
Boom Spraying, Chemical Transfer, Deicing, Disinfectant/Sanitizer Spraying, Fertilizer Application, Fire Suppression, Herbicide Spraying, Irrigation, Lawn Care, Orchard Spraying, Pest Control, Pesticide Spraying, Turf Spraying, Vineyard Spraying, Water Transfer
Drive Shaft Connection Type
Solid
Media Temperature - Maximum
140 Degrees F
Chemical Compatibility
Water
Power Source
Electric
Discharge Standard
Quick Connect
Full Load Current
8.0 A
Includes Gearbox
No Gearbox Included
Pressure Switch On Pressure
68 psi
Pump Control Type
Demand
Pump Drive Configuration
Electric Motor Unit
Includes Heat Sink
No Heat Sink Included
Pressure Switch Off Pressure
70 psi
Inlet Standard
Quick Connect
Gasket Material
EPDM
Pump Technology
Diaphragm
Self-Priming Lift - Maximum
10 ft
Electrical Connection Type
Two-Pin Molded Connector
Discharge Pressure - Maximum
70 psi
Number of Diaphragms
1
Power Source - TS Only
Electric

Description

Electric Sprayer Pump, Air Consumption (Maximum) Not Applicable, Air Intake Pressure (Maximum) Not Applicable, Operating Pressure (Maximum) 70 psi, Air Intake Connection Size Not Applicable, Air Intake Connection Type Not Applicable, Diaphragm Chamber Design 3, Diaphragm Material Santoprene, Check Valve Material Viton, Discharge Connection Size 3/4 in, Discharge Connection Type Quick Connect, Flow Rate (Maximum) 2.2 gpm, Housing Material Polypropylene, Intake Connection Size 3/4 in
