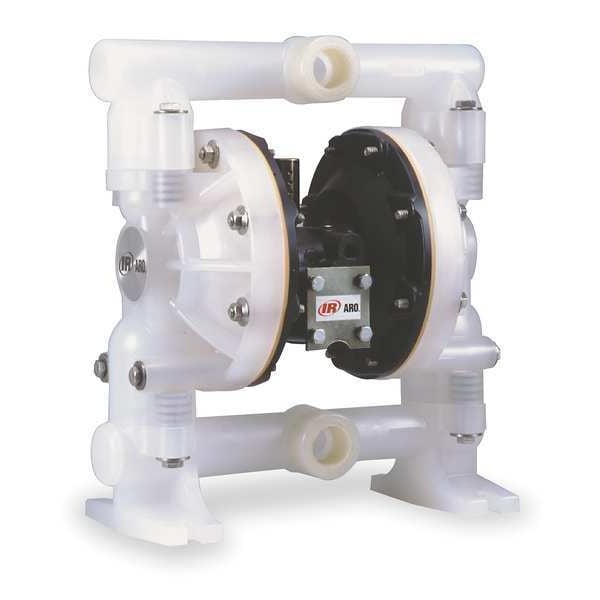

Double Diaphragm Pump, Polypropylene, Air Operated, PTFE, 47 GPM

  • Mfr # 6661AJ-344-C

  • Zoro # G1352696

product price:  $1,684.99
/ea
Free Shipping & Returns

Key Features

Housing Material - Pumps
Polypropylene
Pump Assembly Type
Bolt
Manifold Connection
Single Port
Valve Material
PTFE
Valve Type
Ball
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
6661AJ-344-C
Zoro #
G1352696
UPC #
-
Country of Origin
United States

Dimensions

Air Intake Connection Size
1/4 in
Manufacturers Warranty Length
5 yr
Overall Width
8.1 in
Overall Length
21.7 in
Overall Height
16 in
Solid Diameter (Maximum)
0.13 in
Media Intake Connection Size
1 in
Media Discharge Connection Size
1 in

Details

Item
Double Diaphragm Pump
Housing Material - Pumps
Polypropylene
Pump Assembly Type
Bolt
Manifold Connection
Single Port
Valve Material
PTFE
Valve Type
Ball
Air Consumption (Maximum)
45 scfm
Air Intake Connection Type
NPT
Check Seat Material
Polypropylene
Diaphragm Material
PTFE
Media Temperature (Maximum)
175 Degrees F
Media Temperature (Minimum)
40 Degrees F
Operating Pressure (Maximum)
120 psi
Self-Priming Dry
15 ft
Self-Priming Wet
20 ft
Agency Compliance
CE, REACH, RoHS
Pump Operation Type
Air
Inlet/Outlet
1 in
Nameplate Voltage
N
Flow Rate (Maximum)
47 gpm
Air Intake Pressure (Maximum)
120 psi
Flow Rate @ 60 psi
40.8 gpm
Flow Rate @ 70 psi
42 gpm
Flow Rate @ 80 psi
44 gpm
Wetted Housing Material
Polypropylene
Media Intake Connection Type
NPT
Series
PRO
Feet of Head (Maximum)
275 ft
Flow Rate @ 90 psi
45.2 gpm
Series Family
Pro
Media Discharge Connection Type
NPT
Flow Rate @ 50 psi
39 gpm
NPSHr
40 ft of head
Manifold Connection Type
NPT
Flow Rate @ 120 psi
48 gpm
Media Intake Location
Bottom
Priming
Self-Priming
Flow Rate @ 100 psi
46 gpm
Viscosity (Maximum)
40,000 cps
Media Discharge Location
Top
Flow Rate @ 40 psi
36 gpm
For Use With Potable Systems
No
Chemical Compatibility
Diaphragm Reinforcement
Not Reinforced
Displacement Per Stroke
0.085 gal
Fluid Chamber Assembly Type
Bolted
Media Discharge Port Configuration
Center Horizontal
Center Section Material
Aluminum
Diaphragm Base Material
PTFE
Manifold Connection Standard
NPT
Includes Solenoid
No Solenoid Included
Wetted Body Material
Polypropylene
Manifold Port Connection Type
Single Port
Media Intake Port Configuration
Center Horizontal
Mounting Hardware Material
Stainless Steel
Material Conductivity
Non-Conductive

Description

Double Diaphragm Pump, Air Consumption (Maximum) 45 scfm, Air Intake Connection Size 1/4 in, Air Intake Connection Type NPT, Check Seat Material Polypropylene, Diaphragm Material PTFE, Feet of Head (Maximum) 289 ft, Flow Rate (Maximum) 48 gpm, Manifold Connection Single Port, Media Discharge Connection Size 1 in, Media Discharge Connection Type NPTF, Media Discharge Location Center, Media Intake Connection Size 1 in, Media Intake Connection Type NPTF, Media Intake Location Center
