Shop DELAVAN FLUID POWER

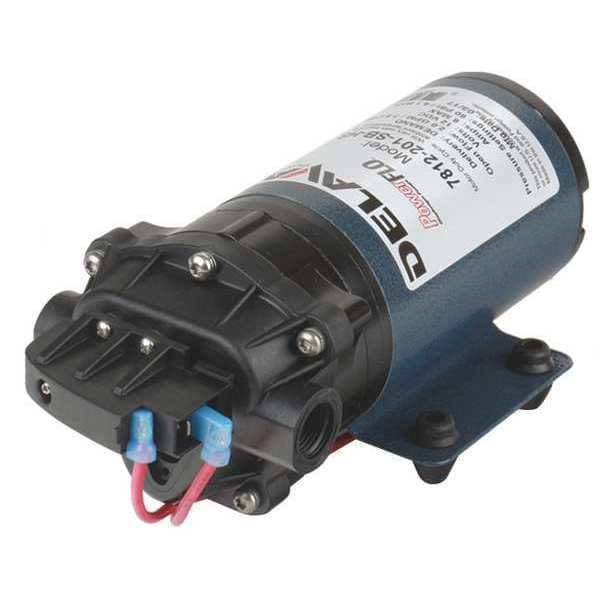

Diaphragm Pump, Polypropylene, Air Operated, Santoprene, 12VDC, 2.0 GPM

  • Mfr # 7812-201-SB-HS

  • Zoro # G1593772

product price:  $115.99
/ea
Free Shipping & Returns

Key Features

Housing Material - Pumps
Polypropylene
Valve Material
Viton®
Air Intake Connection Size
3/8 in FNPT
Diaphragm Material
Santoprene
Media Temperature (Maximum)
140 Degrees F
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
7812-201-SB-HS
Zoro #
G1593772
UPC #
830344009328
Country of Origin
United States

Dimensions

Air Intake Connection Size
3/8 in FNPT
Overall Width
4 in
Overall Length
8.5 in
Overall Height
3.5 in
Media Discharge Connection Size
3/8 in
Media Intake Connection Size
3/8 in
Intake Connection Size
3/8 in
Discharge Connection Size
3/8 in
Discharge Diameter
3/8 in
Shaft Outer Diameter
8 mm
Inlet Diameter
3/8 in
Wire Rope Length
8.5 in

Details

Item
Diaphragm Pump
Housing Material - Pumps
Polypropylene
Valve Material
Viton®
Diaphragm Material
Santoprene
Media Temperature (Maximum)
140 Degrees F
Operating Pressure (Maximum)
60 psi
Fuse Amps
7.5 A
Agency Compliance
CE/NSF
Features
Heat Sink On Motor to Keep It Cool
Prime in Feet
8
Pressure On
20 psi
Motor Type
Totally enclosed Nonventilated
Type
Diaphragm
Diaphragm Design
Three Chamber
Pressure Off
60 psi
Pressure Switch
Yes
Inlet/Outlet
3/8 FNPT
Pump Operation Type
Electric
Standards
NSF Certified
Current
7.5 A
Series
7800
Flow Rate @ 20 psi
1.6 gpm
Flow Rate @ 0 psi
1.7 gpm
Flow Rate (Maximum)
2 gpm
Diaphragm Chamber Design
3
Priming
Self-Priming
Motor Enclosure
Totally Enclosed Non-Ventilated
Flow Rate @ 40 psi
1.5 gpm
Nameplate Voltage
12V DC
Media Intake Connection Type
FNPT
Media Discharge Connection Type
FNPT
Check Valve Material
FKM
Discharge Connection Type
FNPT
Housing Material
Polypropylene
Intake Connection Type
FNPT
Pump Control Type
Demand
Power Source
Electric
Electrical Connection Type
Power Cord with Plug
Includes Heat Sink
Heat Sink Included
Pump Drive Configuration
Electric Motor Unit
Chemical Compatibility
Fertilizer, Herbicide
Gasket Material
FKM
Discharge Pressure - Maximum
60 psi
Full Load Current
22.5
Includes Regulator
No Regulator Included
Number of Diaphragms
1
Media Temperature - Maximum
140 Degrees F
Feet of Head (Maximum)
138.4 ft
Fluid Head Material
Polypropylene
Pressure Switch Off Pressure
60 psi
Pump Technology
Diaphragm
Self-Priming Lift - Maximum
12 ft
Phase
Single
Pressure Switch On Pressure
50 psi
Pumping Application
Boom Spraying, Chemical Transfer, Deicing, Disinfectant/Sanitizer Spraying, Fertilizer Application, Herbicide Spraying, Irrigation, Lawn Care, Orchard Spraying, Pest Control, Pesticide Spraying, Soft Wash, Turf Spraying, Vineyard Spraying, Water Transfer
Includes Gearbox
No Gearbox Included
Motor Speed - Maximum
2,200 RPM
Power Source - TS Only
Electric

Description

Diaphragm Pump, Operating Pressure (Maximum) 60 psi, Diaphragm Chamber Design 3, Diaphragm Material Santoprene, Check Valve Material FKM, Discharge Connection Size 3/8 in, Discharge Connection Type FNPT, Flow Rate (Maximum) 2 gpm, Housing Material Polypropylene, Intake Connection Size 3/8 in, Intake Connection Type FNPT, Nameplate Voltage 12V DC, Priming Self-Priming, Pump Operation Type Electric, Pressure Switch Yes, Standards NSF Certified, Feet of Head (Maximum) 138.4 ft
