Shop ARO

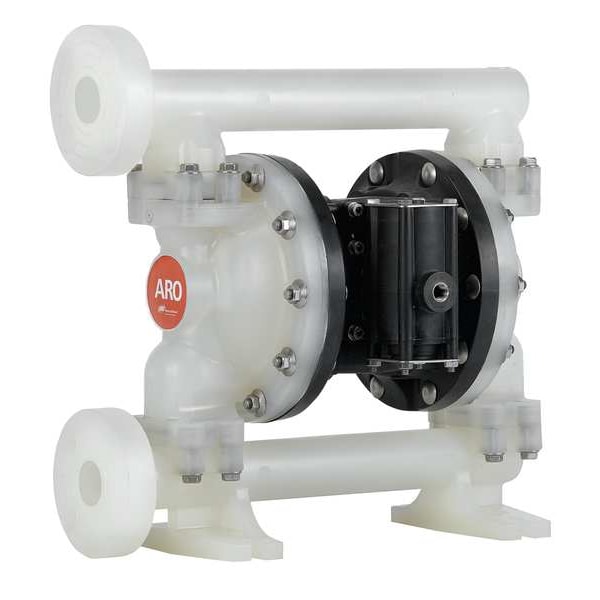

Double Diaphragm Pump, Polypropylene, Air Operated, PTFE, 53 GPM

  • Mfr # PD10P-FPS-PTT

  • Zoro # G1405993

product price:
$
1,939.99
/ea
Free Shipping & Returns

Key Features

Housing Material - Pumps
Polypropylene
Pump Assembly Type
Bolt
Manifold Connection
Single Port
Valve Material
PTFE
Valve Type
Ball
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
PD10P-FPS-PTT
Zoro #
G1405993
UPC #
-
Country of Origin
United States

Dimensions

Air Intake Connection Size
1/4 in
Manufacturers Warranty Length
5 yr
Overall Height
14.8 in
Overall Width
16 in
Overall Length
14.2 in
Media Discharge Connection Size
1 in
Solid Diameter (Maximum)
0.13 in
Media Intake Connection Size
1 in
Wire Rope Length
14.2 in
Length
14.2 in

Details

Item
Double Diaphragm Pump
Housing Material - Pumps
Polypropylene
Pump Assembly Type
Bolt
Manifold Connection
Single Port
Valve Material
PTFE
Valve Type
Ball
Air Consumption (Maximum)
50 scfm
Air Intake Connection Type
NPT
Check Seat Material
Polypropylene
Diaphragm Material
PTFE
Media Temperature (Maximum)
175 Degrees F
Media Temperature (Minimum)
40 Degrees F
Operating Pressure (Maximum)
120 psi
Self-Priming Dry
19 ft
Pump Operation Type
Air
Agency Compliance
CE, REACH, RoHS
Inlet/Outlet
1 in
Chemical Compatibility
Priming
Self-Priming
Media Intake Connection Type
Flange
Wetted Housing Material
Polypropylene
Flow Rate @ 120 psi
51.5 gpm
NPSHr
38 ft of head
Series Family
EXP
Flow Rate (Maximum)
53 gpm
For Use With Potable Systems
No
Flow Rate @ 100 psi
50.5 gpm
Mounting Hardware Material
Stainless Steel
Flow Rate @ 50 psi
31.5 gpm
Viscosity (Maximum)
40,000 cps
Flow Rate @ 60 psi
37.2 gpm
Flow Rate @ 90 psi
48.6 gpm
Flow Rate @ 70 psi
41 gpm
Feet of Head (Maximum)
265 ft
Media Discharge Connection Type
Flange
Series
EXP
Air Intake Pressure (Maximum)
120 psi
Media Intake Location
Bottom
Flow Rate @ 80 psi
45.75 gpm
Media Discharge Location
Top
Nameplate Voltage
N
Manifold Connection Type
Flange
Flow Rate @ 40 psi
22 gpm
Manifold Connection Standard
Flange
Manifold Port Connection Type
Single Port
Displacement Per Stroke
0.113 gal
Media Discharge Port Configuration
Side
Material Conductivity
Non-Conductive
Center Section Material
Polypropylene
Diaphragm Reinforcement
Not Reinforced
Diaphragm Base Material
PTFE
Media Intake Port Configuration
Side
Fluid Chamber Assembly Type
Bolted
Wetted Body Material
Polypropylene
Includes Solenoid
No Solenoid Included

Description

Double Diaphragm Pump, Air Consumption (Maximum) 50 scfm, Air Intake Connection Size 1/4 in, Air Intake Connection Type Flange, Check Seat Material Polypropylene, Diaphragm Material PTFE, Feet of Head (Maximum) 289 ft, Flow Rate (Maximum) 51.5 gpm, Manifold Connection Single Port, Media Discharge Connection Size 1 in, Media Discharge Connection Type Flange, Media Discharge Location Side, Media Intake Connection Size 1 in, Media Intake Connection Type Flange, Media Intake Location Side
