  9. Double Diaphragm Pump, Polypropylene, Air Operated, PTFE, 3.25 GPM
Shop All Diaphragm Pumps
Dayton

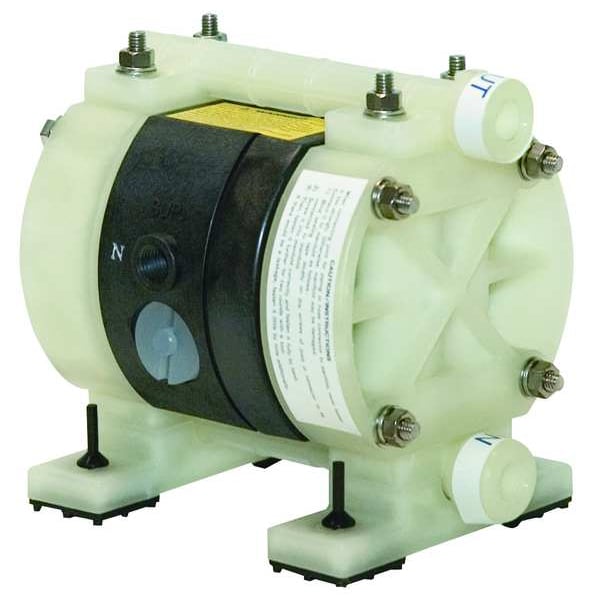

Double Diaphragm Pump, Polypropylene, Air Operated, PTFE, 3.25 GPM

product price: $454.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Housing Material - Pumps Polypropylene
  • Diaphragm Material - Pumps PTFE
  • Max. Flow 3.25 gpm
  • Pump Operation Type Air
  • Max. Temp - Pumps 180 Degrees F
See all product information

Product Information

Dimensions

Inlet/Outlet Size 1/4 in
Air Inlet Size 1/4 in FNPT
Height 5 51/64 in
Length 6 in
Width 5 7/8 in
Manufacturers Warranty Length 1 yr
Max. Dia. Solids Clear Liquid
Overall Width 5.9 in
Overall Height 5.8 in
Overall Length 6 in
Media Intake Connection Size 1/4 in
Media Discharge Connection Size 1/4 in
Solid Diameter (Maximum) 0 in
Air Intake Connection Size 1/4 in

Details

Housing Material - Pumps Polypropylene
Diaphragm Material - Pumps PTFE
Max. Flow 3.25 gpm
Item - Air Operated Pumps Double Diaphragm Pump
Pump Operation Type Air
Max. Temp - Pumps 180 Degrees F
Connection Style NPT
Operation Type Air Operated
Self-Priming Wet 28 ft
Max. Operating Pressure 100 psi
Diaphragm Material PTFE
Self-Priming Dry 5 ft
Max. Temp. 180 Degrees F
Ball Material PTFE
Valve Type Flat
Manifold Connection Single Port
Check Seat Material Polypropylene
Body Material Polypropylene
Max. Flow GPM 3.25 gpm
Item Double Diaphragm Pump
Pump Assembly Type Bolt
Operating Pressure (Maximum) 100 psi
Duty Cycle Continuous
Flow Rate @ 80 psi 3.1 gpm
Valve Material PTFE
Air Consumption (Maximum) 9 scfm
Flow Rate (Maximum) 3.3 gpm
Mounting Hardware Material Stainless Steel, Steel
Wetted Housing Material Polypropylene
Non-Wetted Housing Material Plastic
Flow Rate @ 20 psi 2 gpm
Media Intake Connection Type NPT
Priming Self-Priming
Air Intake Pressure (Maximum) 100 psi
Flow Rate @ 100 psi 3.5 gpm
Flow Rate @ 40 psi 2.26 gpm
Manifold Connection Type NPT
Air Intake Connection Type FNPT
Viscosity (Maximum) 500 cps
Media Discharge Location Top
Media Temperature (Minimum) 40 Degrees F
Media Discharge Connection Type NPT
Media Intake Location Bottom
For Use With Potable Systems No
Flow Rate @ 60 psi 2.75 gpm
Media Temperature (Maximum) 180 Degrees F

Description

Double Diaphragm Pump, Air Consumption (Maximum) 9 scfm, Air Intake Connection Size 1/4 in, Air Intake Connection Type FNPT, Check Seat Material Polypropylene, Diaphragm Material PTFE, Feet of Head (Maximum) Not Applicable, Flow Rate (Maximum) 3.3 gpm, Manifold Connection Single Port, Media Discharge Connection Size 1/4 in, Media Discharge Connection Type NPT, Media Discharge Location Top, Media Intake Connection Size 1/4 in, Media Intake Connection Type NPT, Media Intake Location Bottom
