  9. Double Diaphragm Pump, Polypropylene, Air Operated, Santoprene, 10.6 gpm GPM 150 Degrees F

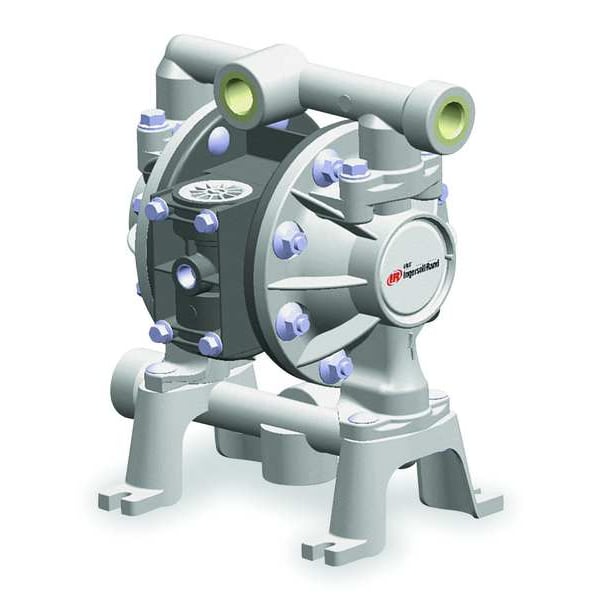

Aro Double Diaphragm Pump, Polypropylene, Air Operated, Santoprene, 10.6 gpm GPM 150 Degrees F PD03P-ARS-PAA - main

Double Diaphragm Pump, Polypropylene, Air Operated, Santoprene, 10.6 gpm GPM 150 Degrees F

  • Mfr # PD03P-ARS-PAA

  • Zoro # G0326067

product price: $565.99
/ea
Free Shipping & Returns

Key Features

Housing Material - Pumps
Polypropylene
Pump Assembly Type
Bolt
Manifold Connection
Multiport
Valve Material
Santoprene®
Valve Type
Ball
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PD03P-ARS-PAA
Zoro #
G0326067
UPC #
-
Country of Origin
United States

Dimensions

Air Intake Connection Size
1/4 in FNPT
Manufacturers Warranty Length
5 yr
Overall Width
6-23/32 in
Overall Height
9.2 in
Overall Length
7.9 in
Media Intake Connection Size
3/8 in
Media Discharge Connection Size
3/8 in
Solid Diameter (Maximum)
1/16 in

Details

Item
Double Diaphragm Pump
Housing Material - Pumps
Polypropylene
Pump Assembly Type
Bolt
Manifold Connection
Multiport
Valve Material
Santoprene®
Valve Type
Ball
Air Consumption (Maximum)
18 scfm
Air Intake Connection Type
NPT
Check Seat Material
Polypropylene
Diaphragm Material
Santoprene
Media Temperature (Maximum)
150 Degrees F
Media Temperature (Minimum)
-40 Degrees F
Operating Pressure (Maximum)
100 psi
Pump Operation Type
Air
Self-Priming Dry
8 1/2 ft
Agency Compliance
CE, REACH, RoHS
Self-Priming Wet
15 ft
Standards
ATEX Certified
Inlet/Outlet
3/8 in
Media Discharge Location
Center, Side
Nameplate Voltage
N
Flow Rate @ 50 psi
9 gpm
Series
PD03P
Feet of Head (Maximum)
230 ft
Flow Rate @ 80 psi
10.5 gpm
Series Family
Compact
Media Intake Location
Center, Side
Air Intake Pressure (Maximum)
100 psi
Wetted Housing Material
Polypropylene
Flow Rate @ 40 psi
8 gpm
Flow Rate (Maximum)
11 gpm
Media Discharge Connection Type
NPTF
For Use With Potable Systems
Yes
Viscosity (Maximum)
500 cps
Flow Rate @ 70 psi
10 gpm
Priming
Self-Priming
Manifold Connection Type
NPT
NPSHr
35 ft of head
Flow Rate @ 60 psi
9.5 gpm
Media Intake Connection Type
NPT
Mounting Hardware Material
Stainless Steel
Flow Rate @ 90 psi
10.8 gpm
Flow Rate @ 100 psi
11 gpm
Chemical Compatibility
Ammonium Hydroxide, Calcium Carbonate, Diesel Exhaust Fluid, Hydrochloric Acid 10%, Hydrochloric Acid 20%, Hydrochloric Acid 30%, Hydrochloric Acid 40%, Potassium Hydroxide 50%, Sodium Hydroxide 20%, Sodium Hydroxide 50%, Sodium Hypochlorite 10%, Sodium Hypochlorite 20%, Sodium Hypochlorite 5%, Sulfuric Acid 10%, Sulfuric Acid 20%, Sulfuric Acid 30%, Sulfuric Acid 40%, Sulfuric Acid 50%, Sulfuric Acid 60%, Sulfuric Acid 70%, Water

Description

Double Diaphragm Pump, Air Consumption (Maximum) 18 scfm, Air Intake Connection Size 1/4 in, Air Intake Connection Type NPT, Check Seat Material Polypropylene, Diaphragm Material Santoprene, Feet of Head (Maximum) 230 ft, Flow Rate (Maximum) 11 gpm, Manifold Connection Multiport, Media Discharge Connection Size 3/8 in, Media Discharge Connection Type NPTF, Media Discharge Location Center, Side, Media Intake Connection Size 3/8 in, Media Intake Connection Type NPT
