  9. Double Diaphragm Pump, Polypropylene, Air Operated, PTFE, 15 GPM
Shop All Diaphragm Pumps
Aro

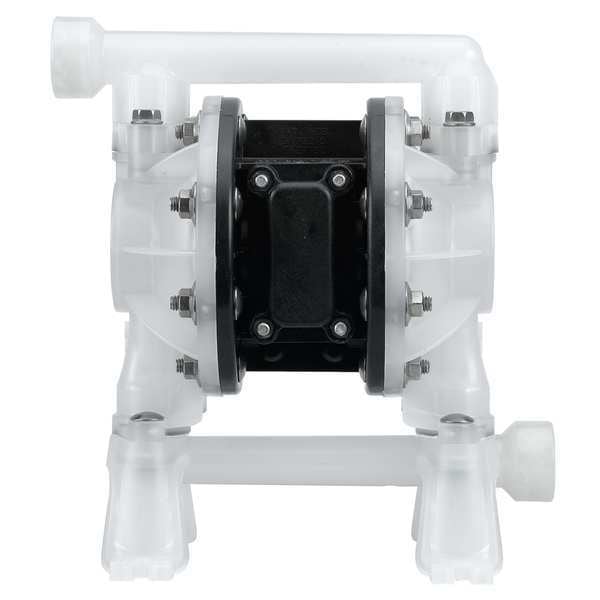

Double Diaphragm Pump, Polypropylene, Air Operated, PTFE, 15 GPM

product price: $1,221.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Housing Material - Pumps Polypropylene
  • Diaphragm Material - Pumps PTFE
  • Max. Flow 15 gpm
  • Pump Operation Type Air
  • Max. Temp - Pumps 150 Degrees F
See all product information

Product Information

Dimensions

Inlet/Outlet Size 3/4 in
Air Inlet Size 1/4 in FNPT
Width 7 3/4 in
Max. Dia. Solids 1/8 in
Length 11 3/4 in
Height 14 1/8 in
Manufacturers Warranty Length 5 yr
Overall Width 6.7 in
Overall Length 9.3 in
Overall Height 11.9 in
Air Intake Connection Size 1/4 in
Media Intake Connection Size 3/4 in
Media Discharge Connection Size 3/4 in
Solid Diameter (Maximum) 0.13 in

Details

Housing Material - Pumps Polypropylene
Diaphragm Material - Pumps PTFE
Max. Flow 15 gpm
Item - Air Operated Pumps Double Diaphragm Pump
Pump Operation Type Air
Max. Temp - Pumps 150 Degrees F
Connection Style NPT
Agency Compliance CE, REACH, RoHS
Self-Priming Dry 10 ft
Max. Temp. 150 Degrees F
Diaphragm Material PTFE
Check Seat Material Polypropylene
Ball Material PTFE
Valve Type Ball
Body Material Polypropylene
Self-Priming Wet 15 ft
Item Double Diaphragm Pump
Max. Flow GPM 15 gpm
Manifold Connection Single Port
Max. Operating Pressure 100 psi
Operation Type Air Operated
Standards ATEX Certified
Manifold Connection Type NPT
Series Family Compact
Media Discharge Location Side
Nameplate Voltage N
Media Temperature (Maximum) 225 Degrees F
Non-Wetted Housing Material Plastic
Media Discharge Connection Type NPTF
Air Consumption (Maximum) 20 scfm
Flow Rate @ 90 psi 16.1 gpm
Media Temperature (Minimum) 40 Degrees F
Valve Material PTFE
Mounting Hardware Material Stainless Steel
Media Intake Connection Type NPT
Flow Rate @ 60 psi 14.9 gpm
Feet of Head (Maximum) 230 ft
Wetted Housing Material Polypropylene
Chemical Compatibility Ammonium Hydroxide, Calcium Carbonate, Diesel Exhaust Fluid, Hydrochloric Acid 10%, Hydrochloric Acid 20%, Hydrochloric Acid 30%, Hydrochloric Acid 40%, Phosphoric Acid 100%, Phosphoric Acid 40%, Phosphoric Acid 50%, Phosphoric Acid 60%, Phosphoric Acid 70%, Phosphoric Acid 80%, Phosphoric Acid 90%, Potassium Hydroxide 50%, Sodium Hydroxide 20%, Sodium Hydroxide 50%, Sodium Hydroxide 80%, Sodium Hypochlorite 10%, Sodium Hypochlorite 20%, Sodium Hypochlorite 5%, Sulfuric Acid 10%, Sulfuric Acid 20%, Sulfuric Acid 30%, Sulfuric Acid 40%, Sulfuric Acid 50%, Sulfuric Acid 60%, Sulfuric Acid 70%, Water
Operating Pressure (Maximum) 100 psi
Viscosity (Maximum) 15,000 cps
For Use With Potable Systems Yes
Media Intake Location Side
Air Intake Pressure (Maximum) 100 psi
Flow Rate @ 50 psi 14 gpm
Priming Self-Priming
Flow Rate @ 40 psi 12.5 gpm
Flow Rate (Maximum) 16.3 gpm
Pump Assembly Type Bolt
Air Intake Connection Type NPT
Flow Rate @ 80 psi 15.9 gpm
NPSHr 35 ft of head
Flow Rate @ 70 psi 15.5 gpm
Series PD07R
Flow Rate @ 100 psi 16.3 gpm

Description

Double Diaphragm Pump, Air Consumption (Maximum) 20 scfm, Air Intake Connection Size 1/4 in, Air Intake Connection Type NPT, Check Seat Material Polypropylene, Diaphragm Material PTFE, Feet of Head (Maximum) 230 ft, Flow Rate (Maximum) 16.3 gpm, Manifold Connection Single Port, Media Discharge Connection Size 3/4 in, Media Discharge Connection Type NPTF, Media Discharge Location Side, Media Intake Connection Size 3/4 in, Media Intake Connection Type NPT, Media Intake Location Side
