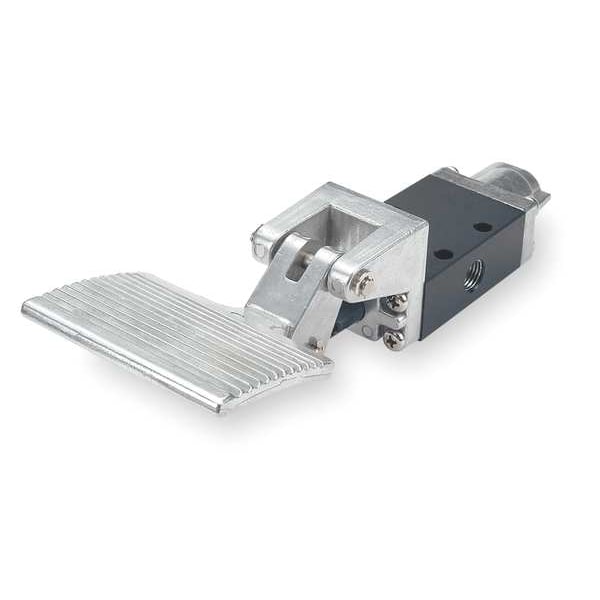

Manual Air Control Valve, 3-Way, 1/4in NPT

  • Mfr # E252FS
  • Zoro # G0315366
product price:
$
186.99
/ea
Free Shipping & Returns

Key Features

Actuator/Return
Foot Pedal/Spring
Coefficient of Volume
0.7
Series
E
Number of Ways
Three-Way
Number of Positions
Two-Position
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
E252FS
Zoro #
G0315366
UPC #
-
Country of Origin
United States
Item
Manual Air Control Valve
Actuator/Return
Foot Pedal/Spring
Coefficient of Volume
0.7
Series
E
Number of Ways
Three-Way
Number of Positions
Two-Position
Connection
NPT
Normally Open / Normally Closed
Normally Closed
Valve Max. Pressure Rating
150 psi
Valve Ways and Positions
3-Way/2-Position
Air Valve Type
3-Way, 2-Position
CFM
26
Max. CFM - Valves
26 cfm
Max. Pressure
150 psi
Temp. Range
-10 Degrees to 180 Degrees F
Valve Actuator / Return
Foot Pedal / Spring
Valve Temp. Range
-10 Degrees to 180 Degrees F
Body Material
Aluminum
Seal Material
Buna-N
Exhaust Port Connection Gender
Female
Coefficient of Volume (Cv)
0.7
For Media
Air
Valve Action
Normally Closed
Valve Port Connection Gender
Female
Operating Temperature - Minimum
-10 Degrees F
Actuator Color
Gray
Operating Pressure - Minimum
20 psi
Product Type
Manual Air Control Valve
Operating Pressure - Maximum
150 psi
Valve Type
Spool
Number of Ports
3
Return Action
Spring Return
Operating Temperature - Maximum
180 Degrees F
Valve Port Connection Type
NPT
Exhaust Port Connection Type
Threaded
Lubrication
Lubrication Required
Body Style
Side-Ported
Vacuum Rating
Not Vacuum Operable
Flow Rate - Maximum
26 scfm
Fail Position
Closed
Actuator Type
Foot Pedal

Description

Manual Air Control Valve, Valve Ways and Positions 3-Way/2-Position, Valve Port Size 1/4 in, Connection NPT, Valve Actuator / Return Foot Pedal / Spring, Max. CFM - Valves 26 cfm, Valve Max. Pressure Rating 150 psi, Valve Temp. Range -10 Degrees to 180 Degrees F, Center Position Not Applicable, Normally Open / Normally Closed Normally Closed, Coefficient of Volume 0.7, Body Material Aluminum, Overall Length 9 5/16 in, Overall Height 2 in, Overall Width 4 in, Series E, Manual Air Control Valve
