Shop SCHMALZ

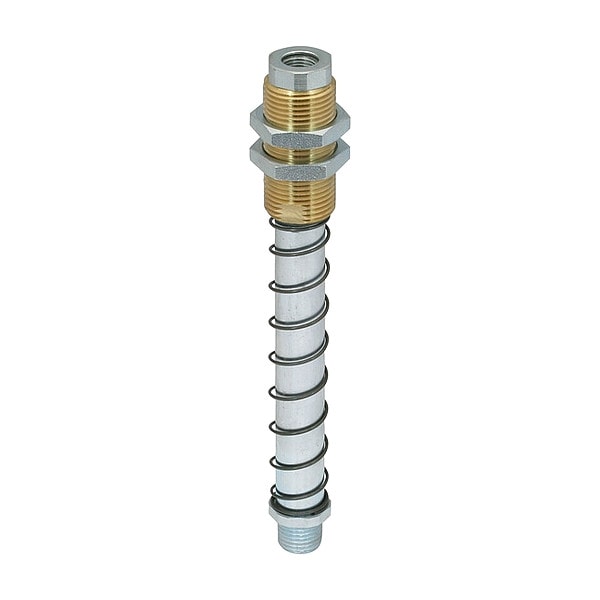

Spring plunger

  • Mfr # 10.01.02.00569

  • Zoro # G911938512

product price:  $136.99
/ea
Free Shipping & Returns

Key Features

Overall Length
153.5 mm
Buffer Rotation
Rotating
Spring Force
15.2 N
Spring Rate
0.26 N/mm
Maximum Operating Temperature
80 Degrees C
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
10.01.02.00569
Zoro #
G911938512
UPC #
-
Country of Origin
Germany

Dimensions

Overall Length
153.5 mm
Vacuum End Port Size
1/8 in
External Mounting Screw Size
M20
External Mounting Thread Size
M20
Pad End Port Size
1/4 in
Hex Size
17 mm, 24 mm
Stroke Length
75 mm
Outside Diameter
20 mm
Wire Rope Length
153.5 mm

Details

Item
Vacuum Buffer
Buffer Rotation
Rotating
Spring Force
15.2 N
Spring Rate
0.26 N/mm
Maximum Operating Temperature
80 Degrees C
Vacuum End Port Gender
Female
Weight
190 g
Series
FSTE
Pad End Port Gender
Male
External Mounting Thread Pitch
1.5 mm
Pad End Port Type
G
Minimum Operating Temperature
0 Degrees C

Description

The SCHMALZ - 10.01.02.00569 is a buffer device for pneumatic systems. Stroke length: 75 mm. Key Features:

  • Rotating buffer rotation type allows swivel motion during operation.
  • External mounting uses M20 size screws with a 1.5 mm thread pitch for secure attachment.
  • Compatible with G-type pad end ports sized at 1/4 in, with male thread gender.
  • Vacuum end port is 1/8 in in size with female thread gender.
  • Spring provides a force of 15.2 N and a spring rate of 0.26 N/mm.
  • Operating temperature range from 0 Degrees C to a maximum of 80 Degrees C.
  • Overall length measures 153.5 mm, with an outside diameter of 20 mm.
  • Hex sizes of 17 mm and 24 mm for relevant wrench or tool interfaces.
  • Weight: 190 g
