  9. Air Drum Pump, 2 lb/min, 450 psi, 3:1

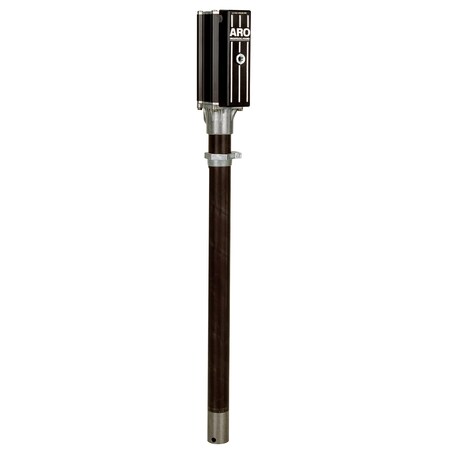

Aro Air Drum Pump, 2 lb/min, 450 psi, 3:1 LM2203A-31-C - main

Air Drum Pump, 2 lb/min, 450 psi, 3:1

  • Mfr # LM2203A-31-C

  • Zoro # G4287377

product price: $726.99
/ea
Free Shipping & Returns

Key Features

Includes
2 in Bung Adapter
Features
Commercial Vehicle Servicing to Lubricating Heavy Mining Equipment
Hose Length
6 ft
Max. Viscosity
8,750 cps
Metered
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LM2203A-31-C
Zoro #
G4287377
UPC #
-
Country of Origin
India

Dimensions

Hose Length
6 ft
Air Inlet Size
1/4 in
Hose Inside Dia.
1/2 in
For Container Size
16 gal
Hose Outside Dia.
29/32 in

Details

Item
Oil Pump
Includes
2 in Bung Adapter
Features
Commercial Vehicle Servicing to Lubricating Heavy Mining Equipment
Max. Viscosity
8,750 cps
Metered
Yes
Wetted Materials
Carbon Steel, Copper, Hard Stainless Steel, Buna-N, PTFE, Zinc/Aluminum Alloy
Ratio
3:1
Includes Discharge Hose
No
For Media Type
Gear Oil, Motor Oil, Standard and Industrial Greases, Transmission Fluid
Discharge Tube Outlet OD
3/8 in
For Container Type
Drum
Power Source
Air
Max. Fluid Temp.
180 Degrees F
Max. Flow Rate
2 lb/min
Hose Cover Material
Neoprene
Max. Outlet Pressure
450 psi
Suction Tube OD
1 in
Pump Connection ID
13/16 in
Includes Bung Adapter
Yes
Diesel Exhaust Fluid Compatible
No
Includes Nozzle
No
Pump Connection OD
1 1/2 in
Discharge Connection Type
FNPT
Motor Enclosure
Air
Hose Tube Material
Buna-N
Air Consumption
9 cfm
Min. Air Pressure
0 psi
Noise Level
85 dB
Housing Material - Pumps
Carbon Steel
Max. Air Pressure
150 psi
Pump Connection Type
FNPT

Description

Oil Pump, Max. Air Pressure 150 psi, Discharge Connection Type FNPT, Features Commercial Vehicle Servicing to Lubricating Heavy Mining Equipment, Air Consumption 9 cfm, Hose Length 6 ft, Includes Discharge Hose No, Motor Enclosure Air, Noise Level 85 dB, Max. Viscosity 8,750 cps, Includes Bung Adapter Yes, Includes Nozzle No

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
