Shop ARO

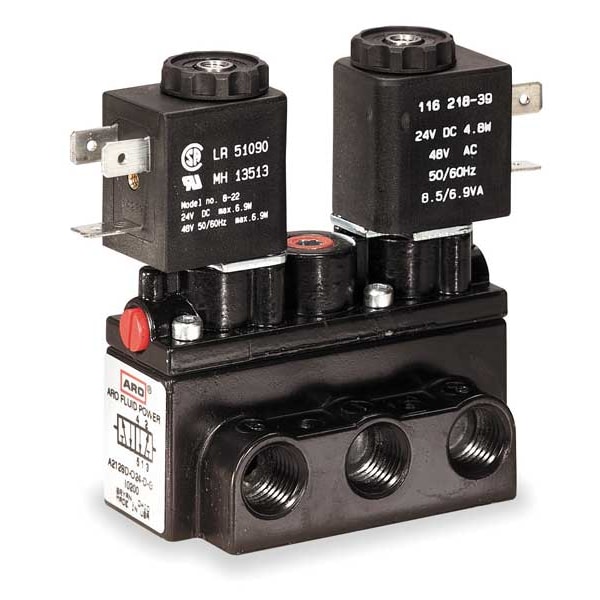

Solenoid Air Control Valve, 1/4 In, 24VDC

  • Mfr # A212SD-024-L

  • Zoro # G2409583

product price:
$
206.99
/ea
Free Shipping & Returns

Key Features

Body Style
Base-Mounted
Series
Alpha
Voltage
24V DC
Valve Actuator / Return
Solenoid / Solenoid
Power Consumption
1.1 W
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
A212SD-024-L
Zoro #
G2409583
UPC #
-
Country of Origin
United States

Dimensions

Overall Height
3 1/4 in
Overall Width
1 15/16 in
Overall Length
3 31/32 in
Pipe Size
1/4 in
Exhaust Port Connection Size
1/4 in
Inlet Port Connection Size
1/4 in
Pilot Port Connection Size
10-32
Wire Rope Length
3 31/32 in
Length
3 31/32 in

Details

Item
Solenoid Air Control Valve
Body Style
Base-Mounted
Series
Alpha
Voltage
24V DC
Valve Actuator / Return
Solenoid / Solenoid
Power Consumption
1.1 W
Coefficient of Volume
1.5
Body Material
Zinc
Override
Non-Locking
Actuator/Return
Solenoid/Solenoid
Electrical Connections
DIN Connectors
Valve Ways and Positions
4-Way/2-Position
CFM
50
Ambient Temp. Range
0 Degrees to 180 Degrees F
Valve Vacuum Range
0 to 29 in Hg
Shifting Technology
Solenoid/Pilot
NEMA Classification
NEMA 4
Pressure Range
0 to 115 psi
Operational Pressure Range
0 to 115 psi
Max. CFM - Valves
50 cfm
Air Valve Type
4-Way, 2-Position
Standards
cURus Listed
Number of Positions
Two-Position
Number of Ways
Four-Way
Includes Mounting Hardware
Hardware Not Included
Coefficient of Volume (Cv)
1.5
Operating Temperature - Minimum
0 Degrees F
Lubrication
Lubrication Not Required
Operating Pressure - Maximum
150 psi
Flow Rate - Maximum
50 cfm
Pilot Type
Internal Pilot
Actuator Type
Double Solenoid
Number of Ports
5
Valve Action
Normally Open
Electrical Connection Type
DIN Solenoid Connector
Operating Temperature - Maximum
180 Degrees F
Vacuum Rating
Vacuum Operable
Inlet Port Connection Type
NPT
Valve Type
Spool
NEMA Rating
4
For Media
Compressed Air, Inert Gas
Exhaust Port Connection Gender
Female
Body Features
Single
Return Action
Solenoid Return
Includes Solenoid Coil
Solenoid Coil Included
Pilot Port Connection Type
NPT
Inlet Port Connection Gender
Female
Exhaust Port Connection Type
NPT
Response Time
20 msec
Fail Position
Open
Product Type
Solenoid Air Control Valve
Spool Material
Aluminum
Pilot Port Connection Gender
Female

Description

Solenoid Air Control Valve, Valve Ways and Positions 4-Way/2-Position, Voltage 24V DC, Center Position Not Applicable, Valve Actuator / Return Solenoid / Solenoid, ISO Class Not Applicable, Pipe Size 1/4 in, Max. CFM - Valves 50 cfm, Operational Pressure Range 0 to 115 psi, NEMA Classification NEMA 4, Valve Vacuum Range 0 to 29 in Hg, Body Style Base-Mounted, Pilot Pressure Not Applicable, Coefficient of Volume 1.5, DIN Connectors Electrical Connections, Shifting Technology Solenoid/Pilot
