This item is Discontinued.

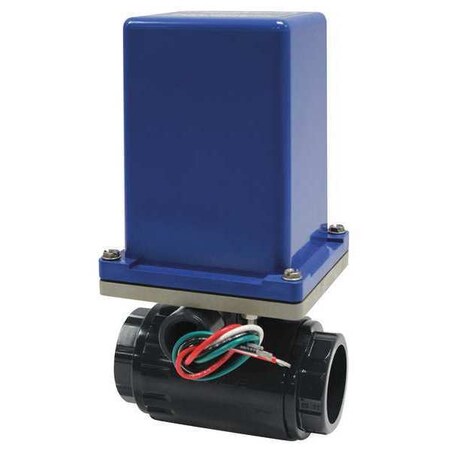

Asahi 2" Socket PVC Ball Valve 2-Way 172015020

2" Socket PVC Ball Valve 2-Way (Discontinued)

  • Mfr # 172015020
  • Zoro # G6161541
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
172015020
Zoro #
G6161541
UPC #
-
Country of Origin
Japan

Dimensions

Pipe Size
2"
Tube Size
2"
Overall Length
6.86 in
Nominal Valve Size
2 in
Connection Size - Side 1
2 in
Connection Size - Side 2
2 in

Details

Body Material
PVC
Body Style
2-Way
Voltage
120 V AC
Handle Type
Square
Ball Valve Basic Body Material
Plastic
Standards
NSF-61
Ball Valve Product Group
Actuated
Handle Material
PVC
Ball Material
PVC
Max. Pressure
150 psi CWP
Connection Type
socket
Features
True Union Design
Temp. Range
30 Degrees to 120 Degrees F
Body Seal Material
EPDM
Number of Bolt Holes
0
Port
Full
Item
Electronically Activated Ball Valve
Seat Material
PTFE
Stem Material
PVC
Stem Type
1-Piece Stem
Compliance
ISO 9001
Mount
Direct
Valve Structure
1-Piece
Seal Material
EPDM
General Connection Type
Socket
Maximum Pressure - Operating
150 psi
Operating Temperature - Maximum
120 Degrees F
NEMA Enclosure Rating
4X
Ball Port Style
Full Port
Connection Type - Side 2
Socket
Maximum Current
2.1 A
Actuator Duty Cycle
25 %
Actuator Enclosure Material
ABS
Operating Temperature - Minimum
30 Degrees F
Valve Ways
2-Way
NSF Certifications for Food and Drinking Water
NSF 61
Manufacturer Warranty
3 yr
Connection Type - Side 1
Socket
Actuator Motor Type
Unidirectional
For Media
Water
Actuator Ambient Temperature - Maximum
150 Degrees F
Maximum Pressure - Combustible Gas
Not Rated
3-A Standard Compliance
Not Rated
Actuator Series
83
Actuator Electrical Entry
1/2 in NPT Conduit
Actuator Maximum Torque
123 in-lb
Valve Construction
One-Piece

Description

Electrically Actuated Two-Way Ball Valve, Ball Material PVC, Nominal Valve Size 2 in, Maximum Pressure - Operating 150 psi, Seat Material PTFE, Seal Material EPDM, Voltage 120V AC, Valve Construction One-Piece, Connection Type - Side 1 Socket, Body Material PVC, Connection Type - Side 2 Socket, Valve Ways 2-Way, Ball Port Style Full Port, Operating Temperature - Minimum 30 Degrees F, Stem Material PVC, Operating Temperature - Maximum 120 Degrees F, NEMA Enclosure Rating 4X
