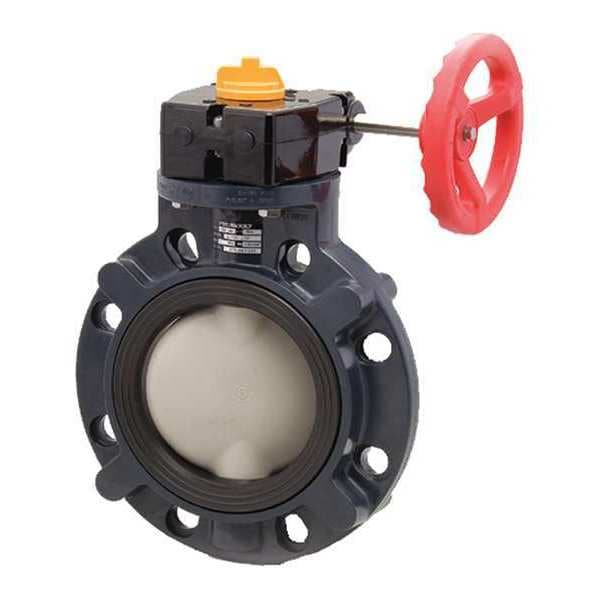

Butterfly Valve, 12" Pipe Size, PVC

  • Mfr # 173719120

  • Zoro # G6160038

product price:
$
3,118.99
/ea
Free Shipping & Returns

Key Features

Style
Wafer
Body Material
PVC
Tube Size
12in
Pipe Size
12 in
Max. Water Pressure
150 psi
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
173719120
Zoro #
G6160038
UPC #
-
Country of Origin
United States

Dimensions

Tube Size
12in
Pipe Size
12 in
Bolt Circle Dia.
17 in
Nominal Valve Size
12 in
Handle Diameter
11.81 in

Details

Item
Butterfly Valve
Style
Wafer
Body Material
PVC
Max. Water Pressure
150 psi
Max. Vacuum
29 in Hg
Handle Type
Gear Operated Handwheel
Number of Bolt Holes
12
Compliance
ASTM D1784 Cell Class 12454A
Disc Material
Polypropylene
Standards
ISO 5211
Temp. Range
30 Degrees to 175 Degrees F
Liner Material
EPDM
Seal Material
EPDM
Handle Material
Polypropylene
Includes Disc Position Indicator
Disc Position Indicator Included
Operating Temperature - Minimum
30 Degrees F
NSF Certifications for Food and Drinking Water
NSF 61
Vacuum Service Rating
-29.92 in Hg
Connection Type
Wafer
Stem Material
316 Stainless Steel
Maximum Pressure - Steam
Not Rated
Number of Flange Bolt Holes
12
Disc Alignment
Concentric
3-A Standard Compliance
Not Rated
Handle - Locking
Locking
Operating Temperature - Maximum
140 Degrees F
Maximum Pressure - Operating
100 psi
For Media
Chemicals, Water
Coefficient of Volume (Cv)
5,700
Number of Stop Positions
19
Valve Series
57P

Description

Butterfly Valve, Wafer Style, Body Material PVC, Max. Water Pressure 150 psi, Max. Vacuum 29 in Hg, Pipe Size 12 in, Temp. Range 30 Degrees to 175 Degrees F, Liner Material EPDM, Disc Material Polypropylene, Handle Type Gear Operated Handwheel, Number of Bolt Holes 12, Bolt Circle Dia. 17 in, Standards ISO 5211, ASTM D1784 Cell Class 12454A
