Shop ASCO

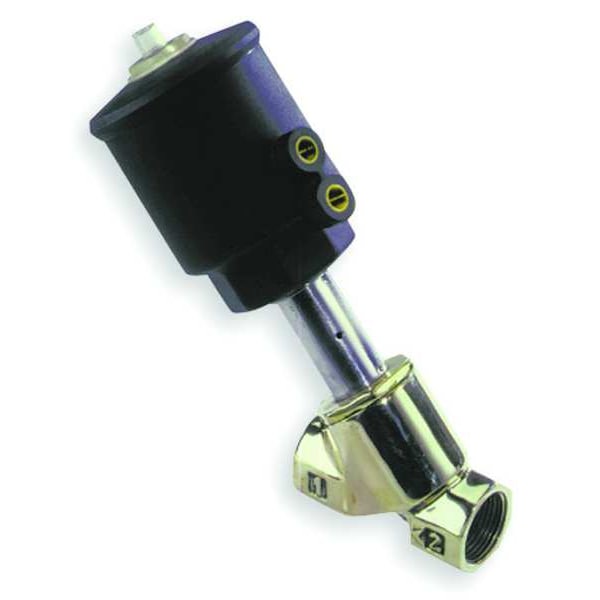

RedHat Angle Body Piston Valve, Bronze, NC, 1.5 In

  • Mfr # 8290A021

  • Zoro # G1822484

product price:  $937.99
/ea
Free Shipping & Returns

Key Features

Pipe Size
1 1/2"
Operator Size
90 mm
Center Line Pipe Center Size
9 1/8"
Valve Design
2-Way/2-Position
Valve Configuration
Normally Closed
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
8290A021
Zoro #
G1822484
UPC #
094700505408
Country of Origin
Mexico

Dimensions

Pipe Size
1 1/2"
Operator Size
90 mm
Center Line Pipe Center Size
9 1/8"
Overall Length
9 5/8 in
Overall Width
9 3/5 in
Orifice Dia.
1 1/2 in
Pipe Size - Valves
1 1/2 in
Overall Height
10 1/4 in
Orifice Diameter
1 1/2 in
Nominal Pipe Size
1 1/2 in
Wire Rope Length
9 5/8 in

Details

Valve Design
2-Way/2-Position
Valve Configuration
Normally Closed
Body Material
Bronze
Item
Angle Body Piston Valve
Max. Operating Pressure Differential Water
120 psi
Min. Operating Pressure Differential
0 psi
Viscosity
2,700 SUS
Max. Fluid Temp.
366 Degrees F
Actuator
Pilot Solenoid Valve, Not Included
Environmental Rating - Valves
Indoor, Outdoor
Stem Material
Stainless Steel
Seal Material - Valves
PTFE
Ambient Temp. Range
15 Degrees to 140 Degrees F
Max. Pilot Pressure
150 psi
Min. Pilot Pressure
60 psi
Valve Ways and Positions
2-Way/2-Position
Max. Operating Pressure Differential Steam
120 psi
Disc Material
Brass
Coefficient of Volume
52.0
Body Material - Valves
Bronze
Seal Material
FKM
Standards
FDA CFR21, RoHS
Fluid Temperature - Maximum
366 Degrees F
Valve Body Style
Angled
Outlet Connection Type
NPTF
Valve Starting Configuration
Normally Closed
Pilot Pressure - Minimum
60 psi
Pilot Pressure - Maximum
150 psi
Operation Type
Pilot Operated
Ambient Temperature - Maximum
140 Degrees F
Valve Ways
2-Way
Valve Positions
2-Position
Ambient Temperature - Minimum
15 Degrees F
Operating Pressure Differential Steam - Maximum
120 psi
Environmental Rating
Indoor, Outdoor
Inlet Connection Type
NPTF
For Media
Aggressive Gases, Aggressive Liquids, Air, Fuel Oil, Hot Water, Inert Gases, Light Oil, Oxygen, Steam, Water
Actuator Type
Single Air Pilot
Operating Pressure Differential Water - Maximum
120 psi
Thread Type
NPTF
Operating Pressure Differential - Minimum
0 psi
Coefficient of Volume (Cv)
52

Description

Angle Body Piston Valve, Nominal Pipe Size 1 1/2 in, Orifice Diameter 1 1/2 in, Coefficient of Volume (Cv) 52, Operating Pressure Differential - Minimum 0 psi, Operating Pressure Differential Steam - Maximum 120 psi, Operating Pressure Differential Water - Maximum 120 psi, Fluid Temperature - Maximum 366 Degrees F, Environmental Rating Indoor, Outdoor, Valve Ways 2-Way, Valve Positions 2-Position, Valve Starting Configuration Normally Closed, Body Material Bronze, Seal Material FKM
