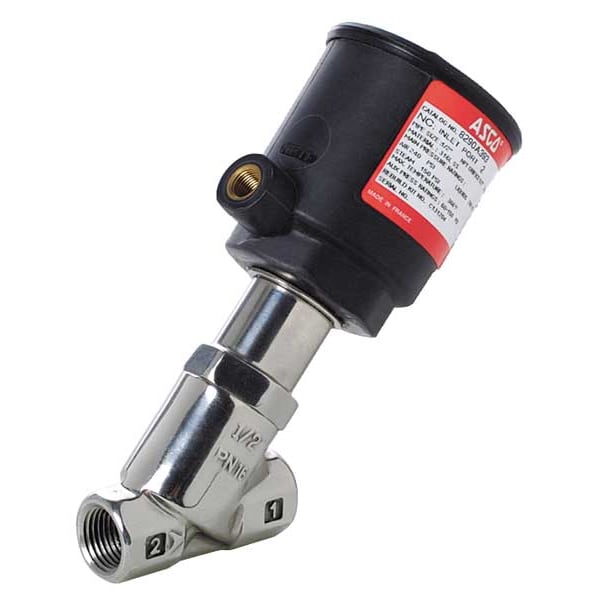

RedHat Angle Body Piston Valve, SS, NC, 1/2 In
Mfr # 8290A393
Zoro # G2086472
product price: $473.99
/ea
Free Shipping & Returns
Key Features
Pipe Size
1/2"
Operator Size
50 mm
Center Line Pipe Center Size
5 1/2"
Valve Design
2-Way/2-Position
Valve Configuration
Normally Closed
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
8290A393
Zoro #
G2086472
UPC #
094706063551
Country of Origin
Mexico
Dimensions
Pipe Size
1/2"
Operator Size
50 mm
Center Line Pipe Center Size
5 1/2"
Overall Height
6 1/16 in
Pipe Size - Valves
1/2 in
Overall Width
5 3/5 in
Orifice Dia.
1/2 in
Overall Length
2 9/16 in
Orifice Diameter
1/2 in
Nominal Pipe Size
1/2 in
Description
Angle Body Piston Valve, Nominal Pipe Size 1/2 in, Orifice Diameter 1/2 in, Coefficient of Volume (Cv) 5.7, Operating Pressure Differential - Minimum 0 psi, Operating Pressure Differential Steam - Maximum 150 psi, Operating Pressure Differential Water - Maximum 240 psi, Fluid Temperature - Maximum 366 Degrees F, Environmental Rating Indoor, Outdoor, Valve Ways 2-Way, Valve Positions 2-Position, Valve Starting Configuration Normally Closed, Body Material Stainless Steel, Seal Material PTFE
