  11. Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1-1/2 in Pipe Size, 120V AC, High Flow, Brass

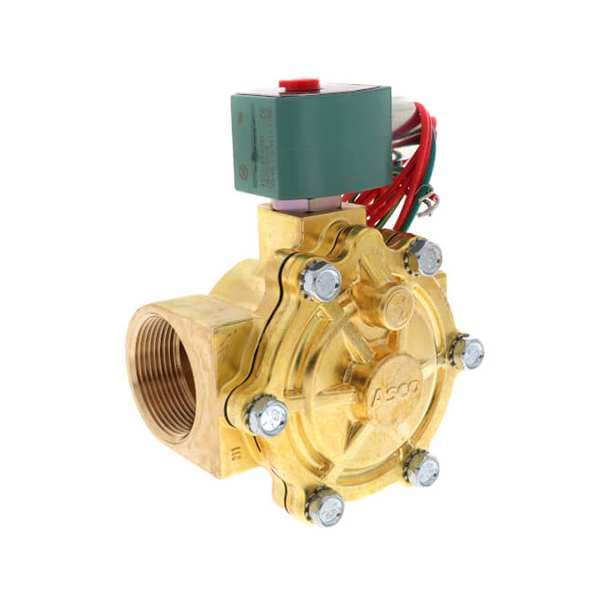

Asco Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1-1/2 in Pipe Size, 120V AC, High Flow, Brass 8210G022 - main

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1-1/2 in Pipe Size, 120V AC, High Flow, Brass

  • Mfr # 8210G022

  • Zoro # G1412372

product price: $566.99
/ea
Free Shipping & Returns

Key Features

For Media
Air, Inert Gas, Light Oil, Water
Valve Ways
2-Way
Valve Starting Configuration
Normally Closed
Nominal Pipe Size
1-1/2 in
Inlet Connection Type
NPTF
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
8210G022
Zoro #
G1412372
UPC #
-
Country of Origin
Mexico

Dimensions

Nominal Pipe Size
1-1/2 in
Center Line Pipe Center Size
4-3/16 in
Overall Length
4-3/8 in
Overall Height
6-1/8 in
Overall Width
3-15/16 in
Orifice Diameter
1-1/4 in

Details

For Media
Air, Inert Gas, Light Oil, Water
Valve Ways
2-Way
Valve Starting Configuration
Normally Closed
Inlet Connection Type
NPTF
Outlet Connection Type
NPTF
Voltage
120V AC
Valve Type
High Flow
Operation Type
Pilot Operated
Seal Material
NBR
Operating Pressure Differential - Maximum
150 psi Air/Inert Gas, Water, 100 psi Light Oil
Operating Pressure Differential - Minimum
5 psi Air/Inert Gas, Light Oil, Water
Item
Solenoid Valve
Body Material
Brass
Application
Air Compressors, Car Wash Equipment, Industrial Water Control, Laundry Equipment, Pumps
Electrical Connections
1/2 in Conduit Hub
Coil Insulation Class
F
Valve Design
2-Way/2-Position
IP Rating
IP66
Coil Enclosure
Watertight
Standards
UL Listed
Operating Pressure Differential Water - Maximum
150 psi
Thread Type
NPT
NEMA Enclosure Rating
1, 2, 3, 3S, 4, 4X
Response Time
1 sec
Ambient Temperature - Maximum
140 Degrees F
Operating Pressure Differential Light Oil - Maximum
100 psi
Coefficient of Volume (Cv)
22.5
Ambient Temperature - Minimum
14 Degrees F
Includes Coil
Yes
Operating Pressure Differential Air/Inert Gas - Minimum
5 psi
Frequency
50 Hz, 60 Hz
Wattage
6.1 W
Environmental Rating
Indoor, Outdoor
Operating Pressure Differential Steam - Maximum
Not Rated
Mounting Orientation
Vertical
Fluid Temperature - Maximum
180 Degrees F
Valve Positions
2-Position
Includes Seal
Yes
Operating Pressure Differential Light Oil - Minimum
5 psi
Operating Pressure Differential Air/Inert Gas - Maximum
150 psi
Operating Pressure Differential Water - Minimum
5 psi
Operating Pressure Differential Hot Water - Maximum
Not Rated

Description

The ASCO 8210G022 Solenoid Valve is a 2-way, 2-position pilot-operated valve with a normally closed configuration. It features a brass body and NBR seals and operates on 120V AC power at 50/60 Hz with a coil insulation class F. Fluids compatibility: air, inert gas, light oil, and water as specified by the manufacturer.

Key Features:

  • Valve Design: 2-Way/2-Position, Normally Closed
  • Valve Type: High Flow, Pilot Operated
  • Material: Brass Body, NBR Seal Material
  • Electrical: 120V AC, 6.1 W Wattage, Coil included, 1/2 in Conduit Hub connection
  • Operating Conditions: Ambient Temperature 14°F to 140°F; Fluid Temperature up to 180°F
  • Pressure Ratings: Maximum Operating Pressure Differential 150 psi (Air/Inert Gas and Water), 100 psi (Light Oil); Minimum Differential 5 psi
  • Flow Capacity: Coefficient of Volume (Cv) 22.5; Orifice Diameter 1-1/4 in
  • Connections: Inlet and Outlet NPTF thread type; Nominal Pipe Size 1-1/2 in
  • Mounting Orientation: Vertical
  • Enclosure: Coil enclosure IP66-rated (water ingress protection); NEMA ratings 1, 2, 3, 3S, 4, 4X; IP Rating 66
  • Dimensions: Overall Height 6-1/8 in, Length 4-3/8 in, Width 3-15/16 in
  • Response Time: 1 second
  • Standards: UL Listed
