Shop ASCO

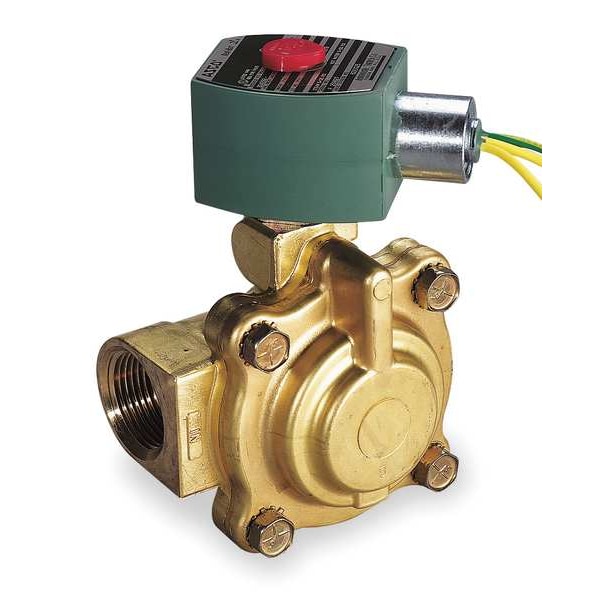

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1 in Pipe Size, 120V AC, Diaphragm, Piston

  • Mfr # 8220G410

  • Zoro # G1281892

product price:
$
571.99
/ea
Free Shipping & Returns

Key Features

For Media
Hot Water, Steam
Valve Ways
2-Way
Valve Starting Configuration
Normally Closed
Nominal Pipe Size
1 in
Inlet Connection Type
NPTF
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
8220G410
Zoro #
G1281892
UPC #
-
Country of Origin
United States
For Media
Hot Water, Steam
Valve Ways
2-Way
Valve Starting Configuration
Normally Closed
Inlet Connection Type
NPTF
Outlet Connection Type
NPTF
Voltage
120V AC
Valve Type
Diaphragm, Piston
Operation Type
Pilot Operated
Seal Material
EPDM, PTFE
Operating Pressure Differential - Maximum
150 psi Air/Inert Gas, Hot Water, 210 psi Light Oil, 50 psi Steam, Water
Operating Pressure Differential - Minimum
5 psi Hot Water, Steam
Item
Solenoid Valve
Body Material
Brass
Coil Insulation Class
F
Max. Fluid Temp. Steam
300 Degrees F
Coil Enclosure
Without Junction Box, Watertight
Electrical Connections
1/2" Conduit w/18" Leads
Ambient Temp. Range
125 Degrees F
Valve Design
Diaphragm
Max. Fluid Temp. Hot Water
210 Degrees F
Application
Hot Water, Steam
Standards
CSA, UL Listed
Frequency
50 Hz, 60 Hz
Operating Pressure Differential Hot Water - Minimum
5 psi
Ambient Temperature - Maximum
140 Degrees F
Includes Coil
Yes
Thread Type
NPT
Operating Pressure Differential Water - Maximum
50 psi
Operating Pressure Differential Air/Inert Gas - Maximum
150 psi
Operating Pressure Differential Steam - Maximum
50 psi
Includes Seal
Yes
Coefficient of Volume (Cv)
11.5
Environmental Rating
Hazardous, Indoor, Outdoor, Washdown
Fluid Temperature - Maximum
300 Degrees F
Operating Pressure Differential Light Oil - Maximum
210 psi
Wattage
10.1 W
Valve Positions
2-Position
Operating Pressure Differential Hot Water - Maximum
150 psi
Operating Pressure Differential Steam - Minimum
5 psi
Ambient Temperature - Minimum
14 Degrees F
NEMA Enclosure Rating
1, 2, 3, 3S, 4, 4X

Description

Solenoid Valve, Valve Ways 2-Way, Valve Starting Configuration Normally Closed, Valve Type Diaphragm and Piston, Nominal Pipe Size 1 in, Orifice Diameter 1 in, Body Material Brass, Coefficient of Volume (Cv) 11.5, Operating Pressure Differential Air/Inert Gas - Maximum 150 psi, Operating Pressure Differential Fuel Gas - Maximum Not Applicable, Seal Material EPDM/PTFE, Voltage 110V AC, 120V AC, Operating Pressure Differential Fuel Oil - Maximum Not Applicable
