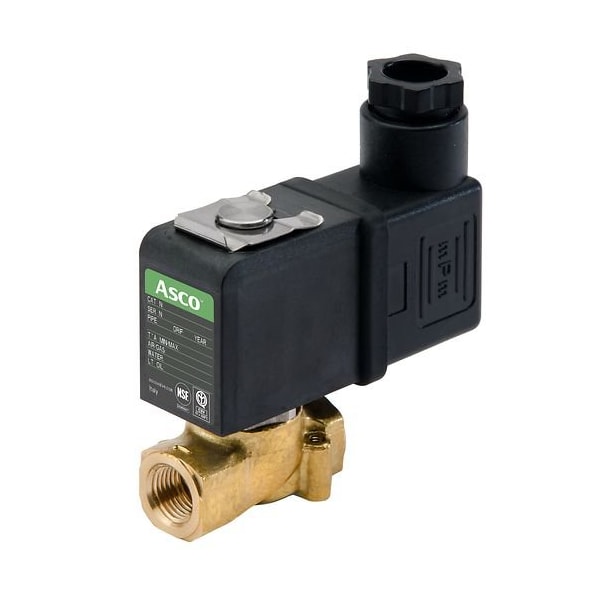

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1/8 in Pipe Size, 120V AC, Compact, FKM
Mfr # SC8256B046V
Zoro # G1087046
product price:
$
99.79
/ea
Key Features
For Media
Air, Inert Gas, Light Oil, Water
Valve Ways
2-Way
Valve Starting Configuration
Normally Closed
Nominal Pipe Size
1/8 in
Inlet Connection Type
NPTF
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- SC8256B046V
- Zoro #
- G1087046
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Nominal Pipe Size
- 1/8 in
- Overall Height
- 2 in
- Overall Width
- 1 in
- Overall Length
- 1-13/16 in
- Center Line Pipe Center Size
- 1-13/16 in
- Orifice Diameter
- 1/8 in
- Wire Rope Length
- 1 13/16 in
- Length
- 1 13/16 in
Description
Valve type: direct-acting; configuration: 2-way/2-position; media compatibility: Air, Inert Gas, Light Oil, Water. Media compatibility: Air, Inert Gas, Light Oil, Water. The valve includes a coil and seal, supports both horizontal and vertical mounting orientations; environmental rating: Indoor. The valve body is constructed of stainless steel, and it operates at a nominal pipe size of 1/8 inch with an orifice diameter of 1/8 inch, providing a Cv of 0.19 for flow control. Electrical specifications include 120V AC at 60 Hz with a coil wattage of 6.3 W. Response time: 20 ms. The valve has a maximum fluid temperature rating of 180°F.
Key Features:
- Valve Design: 2-Way/2-Position, Normally Closed
- Operation Type: Direct Acting
- Body Material: Stainless steel
- Media Compatibility: Air, Inert Gas, Light Oil, Water
- Connection Type: Inlet and Outlet - NPTF, Thread Type - NPT
- Nominal Pipe Size: 1/8 in; Orifice Diameter: 1/8 in; Center Line Pipe Center Size: 1-13/16 in
- Operating Pressure Differential Maximum: 135 psi Air/Inert Gas, 80 psi Light Oil, 126 psi Water; Minimum: 0 psi
- Coil enclosure: Watertight; junction box: not included; Coil Insulation Class: F; Electrical Connections: DIN
- Mounting Orientation: Horizontal or Vertical
- Environmental rating: Indoor; NEMA Enclosure Rating: 4, 4X; IP Rating: 66
- Includes Coil and Seal
- Response time: 20 ms
- Seal Material: FKM
- Overall Dimensions: Length 1-13/16 in, Width 1 in, Height 2 in
- Wattage: 6.3 W; Voltage: 120V AC; Frequency: 60 Hz
- Certifications: CSA, NSF, UL Listed
