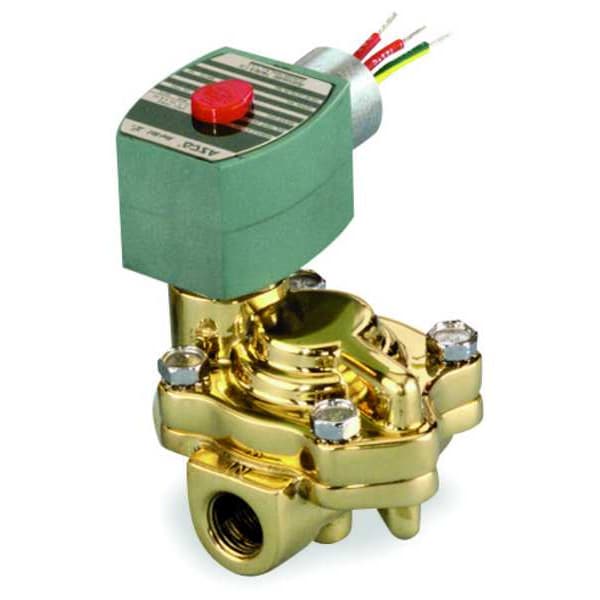

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 3/4 in Pipe Size, 120V AC, Slow-Closing, Brass
Mfr # 8221G005
Zoro # G1269012
product price:
$
514.99
/ea
Free Shipping & Returns
Key Features
For Media
Water
Valve Ways
2-Way
Valve Starting Configuration
Normally Closed
Nominal Pipe Size
3/4 in
Inlet Connection Type
NPTF
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 8221G005
- Zoro #
- G1269012
- UPC #
- -
- Country of Origin
- Mexico
Dimensions
- Nominal Pipe Size
- 3/4 in
- Center Line Pipe Center Size
- 3-3/4 in
- Overall Width
- 3-7/16 in
- Overall Height
- 4-9/16 in
- Overall Length
- 2-15/16 in
- Orifice Diameter
- 3/4 in
- Wire Rope Length
- 2 15/16 in
- Length
- 2 15/16 in
Description
The ASCO 8221G005 is a pilot-operated, slow-closing solenoid valve that controls the flow of water and light oil in piping systems. It operates with a 2-way/2-position, normally closed configuration and includes the coil and seals necessary for installation. Maximum fluid temperature: 180°F; Cv: 3; differential pressure rating: 5-150 psi. Environmental rating: Corrosive, Hazardous, Indoor, Outdoor; watertight coil enclosure rated IP66 and multiple NEMA ratings (1, 2, 3, 3S, 4, 4X).
Key Features:
- Body Material: Brass
- Seal Material: NBR (Buna-N)
- Nominal Pipe Size: 3/4 in
- Orifice Diameter: 3/4 in
- Center Line Pipe Size: 3-3/4 in
- Valve Design: 2-Way/2-Position, Slow-Closing
- Valve Starting Configuration: Normally Closed
- Operation Type: Pilot Operated
- Electrical Voltage: 120V AC
- Wattage: 6.1 W
- Coil Enclosure: Without Junction Box, Watertight; IP Rating: 66
- Electrical Connections: 1/2 in Conduit with 18 in Leads
- Cv: 3
- Maximum Fluid Temperature: 180°F
- Differential Pressure Rating: 5-150 psi
- Environmental rating: Corrosive, Hazardous, Indoor, Outdoor
- Includes: Coil and Seal
- Inlet and Outlet Connection Type: NPTF with NPT Thread Type
- Dimensions: Overall Height 4-9/16 in; Overall Length 2-15/16 in; Overall Width 3-7/16 in
- Standards: CSA, UL Listed
- NEMA Enclosure Ratings: 1, 2, 3, 3S, 4, 4X
