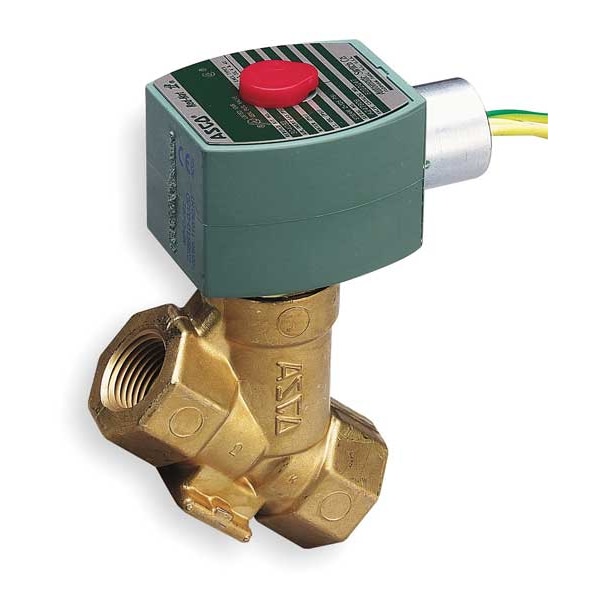

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 3/8 in Pipe Size, 120V AC, High Temperature
Mfr # 8222G074
Zoro # G1906231
Key Features
Specifications
Product Information
- MFR #
- 8222G074
- Zoro #
- G1906231
- UPC #
- 094703404135
- Country of Origin
- United States
Dimensions
- Nominal Pipe Size
- 3/8 in
- Overall Length
- 2-9/32 in
- Center Line Pipe Center Size
- 3-5/8 in
- Overall Height
- 4-3/16 in
- Overall Width
- 1-11/16 in
- Orifice Diameter
- 3/8 in
- Wire Rope Length
- 2 9/32 in
- Length
- 2 9/32 in
Description
The ASCO 8222G074 is a normally closed, 2-way pilot-operated solenoid valve rated for steam service and compatible media per manufacturer specifications. It features a brass Y-shaped diaphragm valve body with PTFE seals and can operate within ambient temperatures from 32°F to 125°F. The valve is rated for steam service with maximum fluid temperature 353°F and maximum steam differential pressure 135 psi per product specifications. It includes the coil and is equipped with electrical connections via 1/2 inch conduit with 18-inch leads, operating at 120V AC and compatible with 50 Hz and 60 Hz frequencies.
Key Features:
- Valve Type: High Temperature Diaphragm design
- Valve Configuration: 2-Way, 2-Position, Normally Closed
- Body Material: Brass with PTFE seals
- Orifice Diameter: 3/8 inch
- Nominal Pipe Size: 3/8 inch with NPT inlet and outlet connections (NPTF thread type)
- Operating Pressure Differential: Minimum 1 psi water, Maximum 135 psi steam
- Maximum Ambient Temperature: 125°F; Minimum Ambient Temperature: 32°F
- Maximum Fluid Temperature: 353°F (steam)
- Coil Insulation Class: H; Wattage: 6.1 W
- Coil Enclosure: Watertight without junction box
- Electrical: 120V AC supply with 1/2 inch conduit and 18-inch leads
- Overall Dimensions: Height 4-3/16 in, Length 2-9/32 in, Width 1-11/16 in
- Includes coil and is CSA and UL Listed
- Applications: Autoclave, Commercial Laundry, Kitchen Equipment, Molding, Steam Sterilizer
