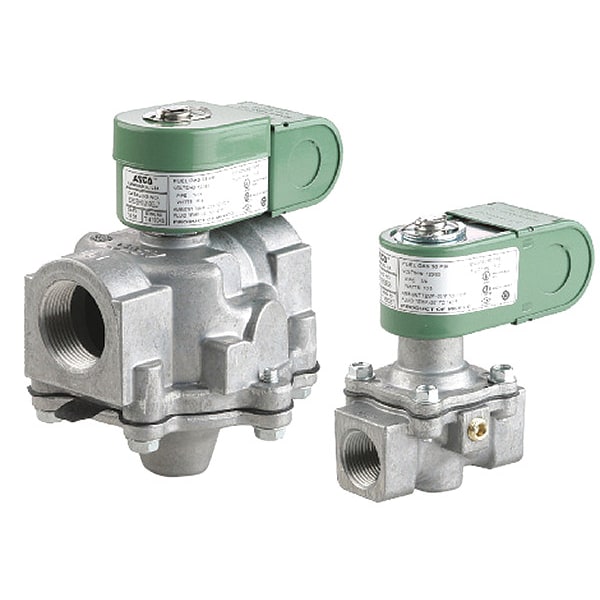

Solenoid Valve, 2-Way, 2-Position, Normally Open, 1-1/4 in Pipe Size, 120/60V AC, Vent, Aluminum
Mfr # S262SH02N3GJ7
Zoro # G6138840
Key Features
Specifications
Product Information
- MFR #
- S262SH02N3GJ7
- Zoro #
- G6138840
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Nominal Pipe Size
- 1-1/4 in
- Overall Width
- 5-3/8 in
- Overall Length
- 5 in
- Center Line Pipe Center Size
- 3-7/16 in
- Overall Height
- 6-3/4 in
- Orifice Diameter
- 1 5/8 in
- Wire Rope Length
- 5 in
- Length
- 5 in
Description
The ASCO S262SH02N3GJ7 is a 2-way, pilot-operated solenoid valve designed for control of commercial and industrial gas burners. It features a normally open vent valve type with an aluminum body and NBR seal material. The valve operates on 120/60V AC power with a coil wattage of 15.4 W and includes the coil and seals. Environmental rating: Indoor, Outdoor. Media: gas (air and inert gases) with a maximum fluid temperature of 140°F and a maximum operating pressure differential of 25 psi for air and inert gases. Ambient temperature range: -40°F to 160°F and a response time of 1 second.
Key Features:
- Body Material: Aluminum
- Seal Material: NBR
- Valve Type: Vent
- Valve Ways: 2-Way
- Valve Starting Configuration: Normally Open
- Operation Type: Pilot Operated
- Nominal Pipe Size: 1-1/4 in
- Orifice Diameter: 1 to 5/8 in
- Coil Enclosure: General Purpose, With Junction Box
- Coil Insulation Class: F
- Electrical Connections: 7/8 in Knockouts
- Environmental rating: Indoor, Outdoor
- Frequency: 60 Hz
- Voltage: 120/60V AC
- Wattage: 15.4 W
- Operating Pressure Differential - Maximum: 25 psi Air/Inert Gas
- Operating Pressure Differential - Minimum: 0 psi
- Fluid Temperature - Maximum: 140°F
- Ambient temperature range: -40°F to 160°F
- Includes: Coil and Seal
- Response Time: 1 sec
- Gas Capacity: 1,941,100 BtuH
- Application: For Control of Commercial and Industrial Gas Burners
- Dimensions: Overall Height 6-3/4 in; Overall Length 5 in; Overall Width 5-3/8 in
- Pipe Center Size: 3-7/16 in; Inlet and Outlet Connection Type: NPTF
- Standards: CSA, FM, UL
- NEMA Enclosure Rating: 1
