Shop WILKINS

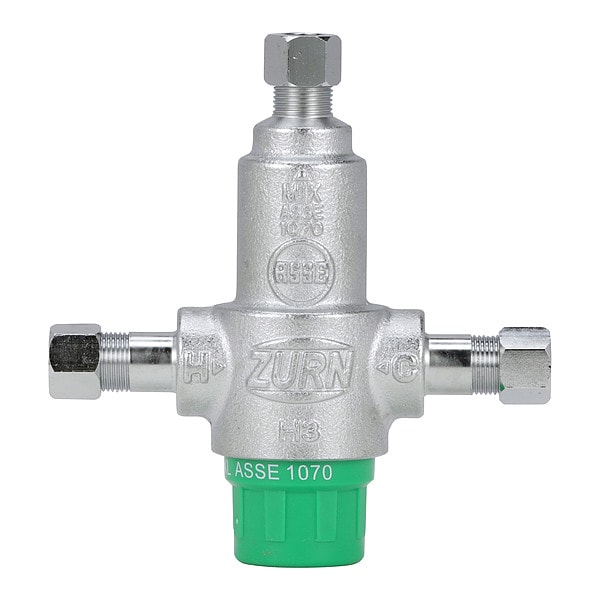

Thrmostatc MixingValve, 3/8 in, Compression

  • Mfr # 38-ZW3870XLT

  • Zoro # G5064525

product price:
$
193.99
/ea
Free Shipping & Returns

Key Features

Inlet Size
3/8 in
Outlet Type
Compression
Flow Rate
0.5 to 3.10 gpm
Inlet Type
Compression
Inlet Temperature (Hot)
120 Degrees to 195 Degrees F
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
38-ZW3870XLT
Zoro #
G5064525
UPC #
612052077765
Country of Origin
China

Dimensions

Inlet Size
3/8 in
Outlet Size
3/8 in
Overall Width
4 3/16 in
Overall Height
4 7/8 in
Size
3/8"
Overall Length
4 3/16 in
Inlet Connection Size - Cold
3/8 in
Outlet Connection Size
3/8 in
Inlet Connection Size - Hot
3/8 in
Wire Rope Length
4 3/16 in
Length
4 3/16 in

Details

Item
Thermostatic Mixing Valve
Outlet Type
Compression
Flow Rate
0.5 to 3.10 gpm
Inlet Type
Compression
Inlet Temperature (Hot)
120 Degrees to 195 Degrees F
Standards
ASSE 1070, CSA B125.70, cUPC, NSF/ANSI/CAN 61-9
Body Material
Cast Bronze
Temp. Range
95 Degrees to 115 Degrees F
Inlet Temperature (Cold)
40 Degrees to 75 Degrees F
Max. Pressure
145 psi
Includes
Check Valves, Inlet Strainers
Material of Construction
Low Lead Cast Bronze
Connection
FNPT
Operating Pressure - Minimum
145 psi
Includes Temperature Gauge
Temperature Gauge Not Included
Inlet Connection Type - Hot
Compression
Operating Temperature - Minimum Outlet
95 Degrees F
Inlet Temperature - Minimum Cold
40 Degrees F
Inlet Temperature - Maximum Hot
195 Degrees F
Inlet Connection Type - Cold
Compression
Seal Material
FKM
Inlet Temperature - Maximum Cold
75 Degrees F
Outlet Connection Type
Compression
Inlet Temperature - Minimum Hot
120 Degrees F
Valve Type
Thermostatic
Operating Temperature - Maximum Outlet
115 Degrees F
Operating Pressure - Maximum
145 psi
For Media
Hot Water, Water

Description

Thermostatic Mixing Valve, Body Material Cast Bronze, Flow Rate 0.5 to 3.10 gpm, Inlet Type Compression, Outlet Type Compression, Inlet Size 3/8 in, Outlet Size 3/8 in, Temp. Range 95 Degrees to 115 Degrees F, Max. Pressure 145 psi, Overall Height 4 7/8 in, Overall Width 4 3/16 in, Inlet Temperature (Cold) 40 Degrees to 75 Degrees F, Inlet Temperature (Hot) 120 Degrees to 195 Degrees F, Includes Check Valves, Inlet Strainers, Standards ASSE 1070, CSA B125.70, cUPC, NSF/ANSI/CAN 61-9
