  11. Solenoid Valve, 3-Way, 2-Position, Normally Closed, 1/4 in Pipe Size, 120V AC, Quick Exhaust, Brass

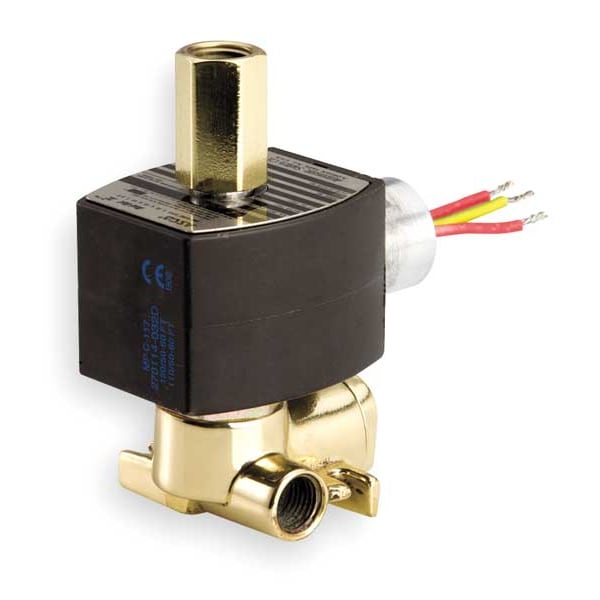

Asco Solenoid Valve, 3-Way, 2-Position, Normally Closed, 1/4 in Pipe Size, 120V AC, Quick Exhaust, Brass EF8317G035 - main

Solenoid Valve, 3-Way, 2-Position, Normally Closed, 1/4 in Pipe Size, 120V AC, Quick Exhaust, Brass

  • Mfr # EF8317G035

  • Zoro # G1884346

product price: $406.46
/ea
Free Shipping & Returns

Key Features

For Media
Air, Inert Gas, Light Oil, Water
Valve Ways
3-Way
Valve Starting Configuration
Normally Closed
Nominal Pipe Size
1/4 in
Inlet Connection Type
NPTF
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
EF8317G035
Zoro #
G1884346
UPC #
094700481344
Country of Origin
Mexico

Dimensions

Nominal Pipe Size
1/4 in
Overall Length
2 in
Overall Height
4 in
Overall Width
2 in
Center Line Pipe Center Size
3-9/16 in
Orifice Diameter
3/32 in

Details

For Media
Air, Inert Gas, Light Oil, Water
Valve Ways
3-Way
Valve Starting Configuration
Normally Closed
Inlet Connection Type
NPTF
Outlet Connection Type
NPTF
Voltage
120V AC
Valve Type
Quick Exhaust
Operation Type
Pilot Operated
Seal Material
NBR
Operating Pressure Differential - Maximum
150 psi Air/Inert Gas, Water, 95 psi Light Oil
Operating Pressure Differential - Minimum
95 psi Light Oil, 5 psi Water
Item
Solenoid Valve
Electrical Connections
1/2 in Conduit with 18 in Leads
Valve Design
3-Way/2-Position
Coil Insulation Class
F
Coil Enclosure
Explosion Proof, Watertight
Body Material
Brass
Application
Analytical and Diagnostic Equipment, Automotive, Biofuel and Heating Systems, Dust Collector Systems, Heating Equipment
Standards
ATEX, CSA, IEC, UL Listed
Operating Pressure Differential Steam - Maximum
Not Rated
Valve Positions
2-Position
Wattage
11.6 W
Frequency
50 Hz, 60 Hz
Includes Coil
Yes
Operating Pressure Differential Water - Minimum
5 psi
Mounting Orientation
Horizontal or Vertical
Operating Pressure Differential Light Oil - Maximum
95 psi
Operating Pressure Differential Air/Inert Gas - Maximum
150 psi
Operating Pressure Differential Hot Water - Maximum
Not Rated
NEMA Enclosure Rating
3, 3S, 4, 4X, 6, 6P, 7, 9
Fluid Temperature - Maximum
180°F
Thread Type
NPT
Operating Pressure Differential Water - Maximum
150 psi
Coefficient of Volume (Cv)
0.2
Operating Pressure Differential Light Oil - Minimum
95 psi
Environmental Rating
Hazardous, Indoor, Outdoor
Includes Seal
Yes

Description

Solenoid Valve, Valve Ways 3-Way, Valve Starting Configuration Configurable, Valve Type Quick Exhaust, Nominal Pipe Size 1/4 in, Orifice Diameter 3/32 in, Body Material Brass, Coefficient of Volume (Cv) 0.2, Operating Pressure Differential Air/Inert Gas - Maximum 150 psi, Operating Pressure Differential Fuel Gas - Maximum Not Applicable, Seal Material NBR, Voltage 110V AC, 120V AC, Operating Pressure Differential Fuel Oil - Maximum Not Applicable, Coil Enclosure Explosion Proof, Watertight
