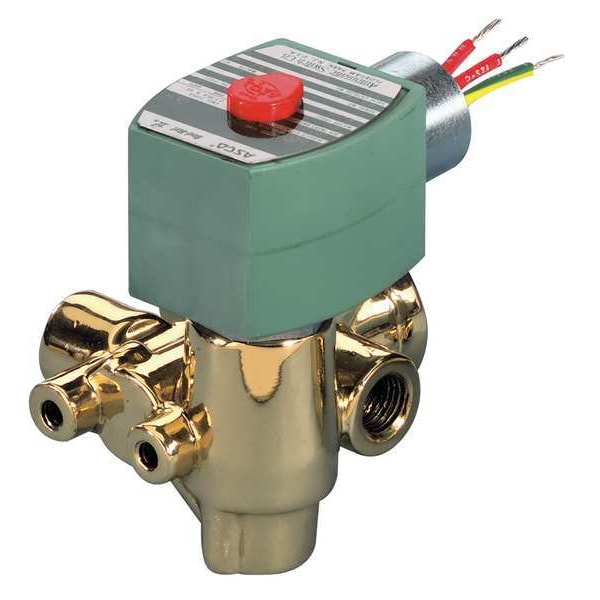

Solenoid Valve, 3-Way, 2-Position, Normally Closed, 3/8 in Pipe Size, 24V DC, Quick Exhaust, Brass
Mfr # EF8321G00224/DCDD
Zoro # G4581376
Key Features
Specifications
Product Information
- MFR #
- EF8321G00224/DCDD
- Zoro #
- G4581376
- UPC #
- -
- Country of Origin
- Mexico
Dimensions
- Nominal Pipe Size
- 3/8 in
- Overall Width
- 2-1/2 in
- Overall Length
- 3-1/8 in
- Center Line Pipe Center Size
- 2 in
- Overall Height
- 3-15/16 in
- Orifice Diameter
- 9/32 in
- Wire Rope Length
- 3 1/8 in
- Length
- 3 1/8 in
Description
The ASCO EF8321G00224/DCDD is a 3-way, 2-position solenoid valve with a normally closed starting configuration and quick exhaust valve type. It uses a single air pilot actuator for operation and features a brass valve body. Controls the flow of air, inert gases, light oil, and water via pilot actuation. The valve can be mounted horizontally or vertically and includes an explosion-proof, watertight coil enclosure with Class F coil insulation. It is rated for both indoor and outdoor environmental conditions and operates at 24 V DC with 10.6 W power consumption.
Key Features:
- Valve Design: 3-Way/2-Position with Normally Closed configuration
- Actuation: Single Air Pilot, Pilot Operated
- Body Material: Brass
- Orifice Diameter: 9/32 in
- Nominal Pipe Size: 3/8 in with NPTF inlet and outlet connections
- Coil: Included; Explosion Proof, Watertight enclosure; Class F insulation; 1/2 in Conduit with 18 in Leads
- Operating Pressure Differential: Maximum 200 psi for Air/Inert Gas, Light Oil, and Water; Minimum 10 psi for Light Oil
- Fluid Compatibility: Air, Inert Gas, Light Oil, Water
- Seal Material: NBR
- Environmental rating: Indoor and outdoor use
- Dimensions: Overall Length 3-1/8 in, Width 2-1/2 in, Height 3-15/16 in
- Voltage: 24 V DC; Wattage: 10.6 W
- Mounting Orientation: Horizontal or Vertical
