Shop ASHCROFT

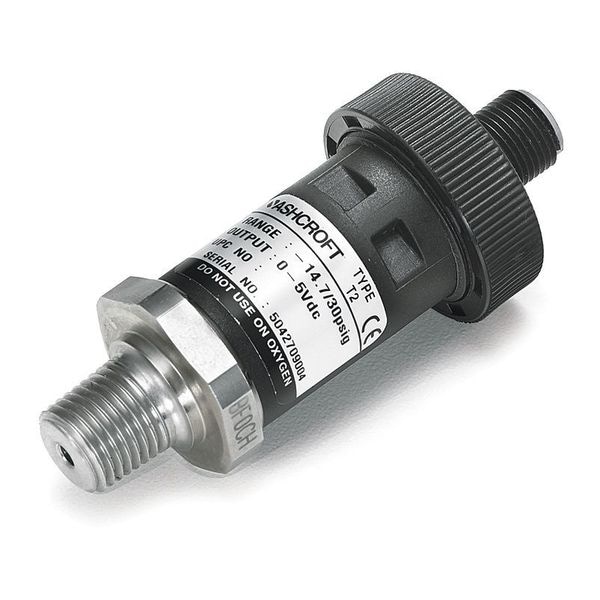

Compound Transducer, Range Vac to 30 PSI

  • Mfr # T27M0242EWVAC/30#GXCY

  • Zoro # G0059981

product price:
$
219.99
/ea
Free Shipping & Returns

Key Features

Accuracy
+/-0.25% of Full Scale
Housing Material
Nylon
Output
4 to 20mA DC
Electrical Connections
4-Pin M12 Connector
Process Connection Type
NPT
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
T27M0242EWVAC/30#GXCY
Zoro #
G0059981
UPC #
783029364789
Country of Origin
United States

Dimensions

Process Connection Size
1/4 in
Process Connection Size - Transmitter
1/4 in
Manufacturers Warranty Length
1 yr
Overall Width
1.06 in
Overall Height
3.45 in

Details

Item
Pressure Transmitter
Accuracy
+/-0.25% of Full Scale
Housing Material
Nylon
Output
4 to 20mA DC
Electrical Connections
4-Pin M12 Connector
Process Connection Type
NPT
Operating Temp.
-40 to 257 F
Power Required
9 to 36V DC
Response Time
1 msec
Series
T2
NEMA Rating
NEMA 4X
Transmitter Type
Compound Transmitter
Compatible With
Any Process Compatible with Stainless Steel
Electrical Connections - Transmitter
Hirschmann Connector
Wiring Entry - Transmitter
None
Process Connection Type - Transmitter
MNPT
Range
30 in Hg Vac to 30 psi
Wetted Materials
Stainless Steel
Output - Transmitter
4 to 20mA DC
Includes
Instructions
Thermal Error
+/-1%
Range Values - Transmitter
30 to 0 to 30
Range Units - Transmitter
in Hg/psi
Loop Resistance
Dependent on Loop Supply Voltage
Max. Pressure (PSI)
90 psi
Accuracy - Transmitter
+/-0.25% Full Scale
Features
Proven Polysilicon Film Sensor
Power Required - Transmitters
9 to 36V DC
Wetted Materials - Transmitters
Stainless Steel
Operating Temp. - Transmitter
-40 Degrees to 257 Degrees F
Housing
Nylon
Wiring Entry
None
Minimum Pressure
-15 psi
Maximum Pressure
30 psi
Type of Pressure
Gauge
Burst Pressure
10x Range
Minimum Operating Temperature
-40 Degrees F
Pressure Units
in Hg/psi
IP Rating
IP66
Process Connection Gender
Male
Intrinsically Safe
No
Number of Wires
2
Fitting Material
Stainless Steel
Electrical Connection
4-Pin M12 Connector
Storage Temperature Range
-40 Degrees F to 257 Degrees F (-40 Degrees C to 125 Degrees C)
Maximum Operating Temperature
257 Degrees F
Overpressure
2x Range
Standards
CE, RoHS, UL Recognized
Explosion/Fire Proof
No
Process Media Temperature - Minimum
-40 Degrees F
Process Media Temperature - Maximum
257 Degrees F
Pressure Measurement - Minimum
-15 psi
Input Voltage
9 to 36V DC
Pressure Type Measured
Compound
Output Power
4 to 20mA DC
Intrinsic Safety
Not Specified Intrinsically Safe
Includes NIST-Traceable Calibration Certificate
No NIST-Traceable Calibration Certificate Included
Pressure Measurement - Maximum
30 psi
NEMA Enclosure Rating
4X

Description

Pressure Transmitter, Minimum Pressure -15 psi, Maximum Pressure 30 psi, Electrical Connections 4-Pin M12 Connector, Output 4 to 20mA DC, Accuracy +/-0.25 Percent of Full Scale, Number of Wires 2, Process Connection Gender Male, Process Connection Size 1/4 in, Process Connection Type NPT, Power Required 9 to 36V DC, NEMA Rating NEMA 4X, IP Rating IP66, Series T2, Wiring Entry None, Maximum Operating Temperature 257 Degrees F, Minimum Operating Temperature -40 Degrees F, Housing Material Nylon
