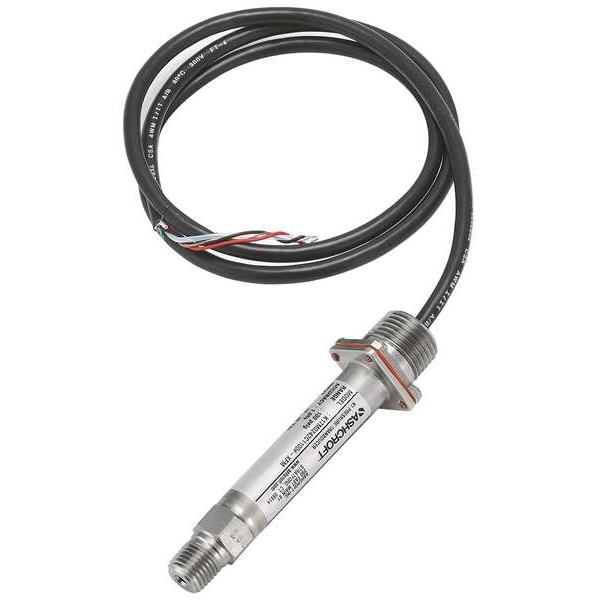

Pressure Transducer, Range 0 to 200 psi
$349.27 /ea
This item ships free. DetailsStandard ground shipping
Details:
Max. Pressure (PSI): 400
Power Required: 9 to 36VDC
Wetted Materials: 316 Stainless Steel
Pressure Transducer, Range 0 to 200 psi, Accuracy +/-0.5% Full Scale, Output 4 to 20 mA at 12 to 30VDC, Power Required 9 to 36VDC, Process Connection 1/4 In NPT Male, Electrical Connections 1/2 In Conduit, Lead Length 36 In, Wetted Materials 316 Stainless Steel, Housing Stainless Steel, Operating Temp -20 To 180 F, NEMA Rating 4X, Non-Incendive, Safety Rating Class 1, Div. 2, Groups A, B, C, and D, Max Pressure 400 PSI, Includes Instructions
Technical Specifications
| Zoro #: G0133052 Mfr #: K17MO242C1200#XFM | |
| Max. Pressure (PSI): 400 | Power Required: 9 to 36VDC |
| Wetted Materials: 316 Stainless Steel | Output: 4 to 20 mA at 12 to 30VDC |
| Compatible With: Any Process Compatible with 316Stainless Steel | Process Connection: 1/4" NPT Male |
| Range: 0 to 200 psi | Lead Length (In.): 36 |
| Loop Resistance: Dependent on Loop Supply Voltage | Item: Pressure Transmitter |
| Includes: Instructions | Accuracy: +/-0.5% Full Scale |
| Safety Rating: Class 1, Div. 2, Groups A, B, C, and D | NEMA Rating: 4X, Non-Incendive |
| Thermal Error: +/-.04% per Degree F from -20 to 168F | Electrical Connections: 1/2" Conduit |
| Housing: Stainless Steel | Operating Temp.: -20 To 180 F |
| Manufacturers Warranty Length: 1 year | Country of Origin (subject to change): United States |
Product Description
Pressure Transducer, Range 0 to 200 psi, Accuracy +/-0.5% Full Scale, Output 4 to 20 mA at 12 to 30VDC, Power Required 9 to 36VDC, Process Connection 1/4 In NPT Male, Electrical Connections 1/2 In Conduit, Lead Length 36 In, Wetted Materials 316 Stainless Steel, Housing Stainless Steel, Operating Temp -20 To 180 F, NEMA Rating 4X, Non-Incendive, Safety Rating Class 1, Div. 2, Groups A, B, C, and D, Max Pressure 400 PSI, Includes Instructions
