  9. Pressure Gauge, 0 to 1 In H2O

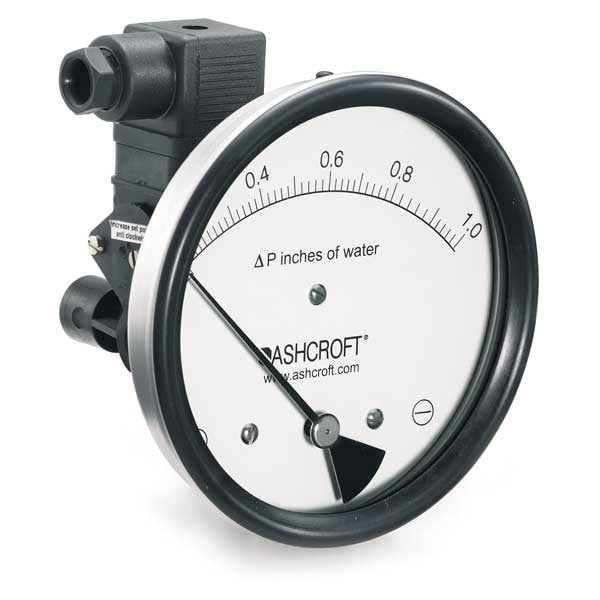

Ashcroft Pressure Gauge, 0 to 1 In H2O 451134EDRQMXV5CYLM1IWD - main

Pressure Gauge, 0 to 1 In H2O

  • Mfr # 451134EDRQMXV5CYLM1IWD

  • Zoro # G2854503

product price: $140.99
/ea
Free Shipping & Returns

Key Features

Accuracy
+/-3.00%
Process Connection Type
NPT
Process Connection Size
1/8 in
Series
1134
Process Connection Gender
Female
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
451134EDRQMXV5CYLM1IWD
Zoro #
G2854503
UPC #
-
Country of Origin
India

Dimensions

Process Connection Size
1/8 in
Nominal Dial Size
4 1/2 in
Gauge Nominal Dial Size
5 in
Manufacturers Warranty Length
5 yr
Differential Gauge Connection Size
1/8 in
For Panel Cut-Out Size
115 mm
For Panel Cutout Diameter
115 mm

Details

Item
Differential Pressure Gauge & Switch
Accuracy
+/-3.00%
Process Connection Type
NPT
Series
1134
Process Connection Gender
Female
Application
Clean Rooms, Filtration Monitoring, Flow Measurement
Process Connection Location
Dual Back and In-Line
Housing Material
Glass Filled Nylon
Pressure Range
0 to 1 in wc
Sensor Type
Diaphragm
Differential Gauge Connection Type
FNPT
Gauge Operating Temp. Range
0 Degrees to 140 Degrees F
Seal Material
Buna-N
Dial Material
Stainless Steel
Contact Rating
0.25A @ 175V AC/V DC
Gauge Primary Range Smallest Graduation
0.02
Diaphragm Material
Buna-N
Rated Total Pressure
35 psi
Basic Gauge Wetted Parts
PTFE / Buna-N
Basic Gauge Case Material
Plastic
Body Material
Glass Filled Nylon
Includes
(2) Nylon 3/16 in Hose Barb Tube Adapters, Flush Mounting Kit, Two Plugs for Sealing Connections Not in Use
Scale Type
Pressure
Gauge Accuracy
+/-3%
Piston Material
PTFE
Differential Pressure Range
0 to 1 in wc
Differential Pressure Range Value
0 to 1
Gauge Connection Location
Back and Side
Relay Type
SPDT
Differential Pressure Gauge Type
Differential Pressure Gauge
Differential Pressure Range Units
in wc
Socket Material
Buna-N/Glass Filled Nylon
Case Material
Stainless Steel
Process Temperature Range
0 Degrees to 175 Degrees F, 0 Degrees to 80 Degrees C
Non-Sparking
No
Removable Bezel
No
Panel-Mountable
No
Maximum Working Static Pressure
35 psi
Blowout Safety Back
No
Includes Mounting Hardware
Yes
Adjustable Set Points
No
Includes Vent Plug
No
Includes Calibration Certificate
No
Lens Material
Glass
Case Shape
Round
Hazardous Location Rating
Not Rated
O-Ring Material
Buna-N
Sensor Material
Buna-N
Switch Contact Type
SPDT with DIN Plug
Dial Color
White
IP/NEMA Rating
Not Rated
Mounting Hardware Included
Flush-Mount, Mounting Bracket, Surface Plate
Gauge Case Material
Stainless Steel
Pressure Gauge Type
Differential Pressure Gauge with Switch
Number of Switches
1
Pressure Measurement - Minimum
0 in wc
Process Media Temperature - Minimum
0 Degrees F
Process Media Temperature - Maximum
175 Degrees F
Pressure Measurement - Maximum
1 in wc
Working Static Pressure - Maximum
35 psi
Product Type
Differential Pressure Gauge
IP Rating
IP65
Switch Contact Form
SPDT with DIN Plug

Description

Differential Pressure Gauge, Pressure Range 0 To 1 In WC, Relay Type SPDT, 0.25A@175VAC/DC, Accuracy +/-2%, Pressure Range Minor Div 0.20 In WC, Rated Total Pressure 35 PSI, Gage Connection 1/8 In NPT, Dial Size 4.5 In, Compatible With Air And Non-Combustible Gas, Ambient Operating Range 0 to 170 Deg F, Includes Instructions
