  9. Pressure Gauge, 0 to 200 In H2O

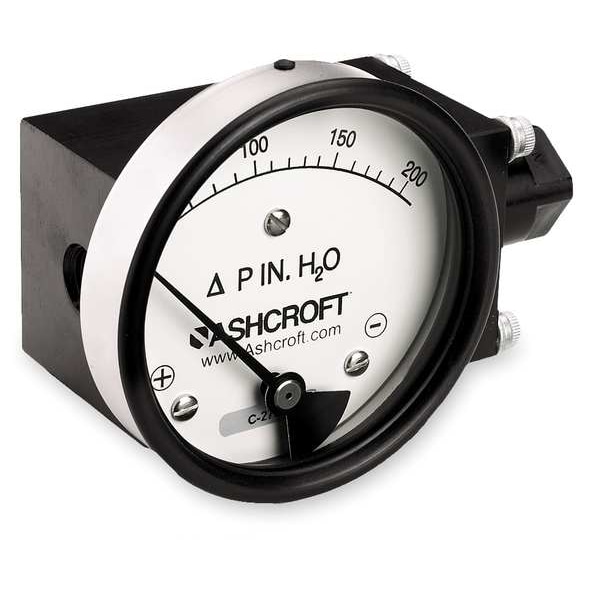

Ashcroft Pressure Gauge, 0 to 200 In H2O 351132FD25SXCYLM200IWD - main

Pressure Gauge, 0 to 200 In H2O

  • Mfr # 351132FD25SXCYLM200IWD

  • Zoro # G0017683

product price: $250.99
/ea
Free Shipping & Returns

Key Features

Accuracy
+/-2.00%
Process Connection Type
NPT
Process Connection Size
1/4 in
Series
1132
Process Connection Gender
Female
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
351132FD25SXCYLM200IWD
Zoro #
G0017683
UPC #
783029143094
Country of Origin
India

Dimensions

Process Connection Size
1/4 in
Nominal Dial Size
3 1/2 in
Gauge Nominal Dial Size
4 1/2 in
Manufacturers Warranty Length
5 yr
Differential Gauge Connection Size
1/4 in
Manufacturer Warranty Length
5 yr
Case Depth
2.74 in
Case Diameter
4 1/4 in
Bolt Circle Diameter
3.86 in

Details

Item
Differential Pressure Gauge
Accuracy
+/-2.00%
Process Connection Type
NPT
Series
1132
Process Connection Gender
Female
Application
Filtration Monitoring, Flow Measurement, Leak Detection, Liquid Level Measurement
Process Connection Location
In-Line
Housing Material
Aluminum
Pressure Range
0 to 200"WC
Sensor Type
Diaphragm
Standards
Class 1, Groups B, C, D, Class 2 Groups E, F, G, Class 3, NEMA 7, 9 and IP 66
Basic Gauge Case Material
Metal
Dial Material
Stainless steel
Differential Pressure Range Units
in wc
Differential Pressure Gauge Type
Differential Pressure Gauge
Gauge Primary Range Smallest Graduation
20
Differential Pressure Range
0 to 200 in wc
Body Material
Aluminum
Rated Total Pressure
1500 psi
Differential Gauge Connection Type
FNPT and MNPT
Gauge Operating Temp. Range
0 Degrees to 170 Degrees F
Gauge Connection Location
Inline
Seal Material
Buna-N, Viton or EPDM
Includes
Instructions
Diaphragm Material
Buna-N
Piston Material
PTFE
Scale Type
Pressure
Differential Pressure Range Value
0 to 200
Basic Gauge Wetted Parts
PTFE / Buna-N / Viton or EPDM
Gauge Accuracy
+/-2%
Case Material
Stainless Steel
Socket Material
Aluminum/Buna-N
Dial Color
White
Panel-Mountable
Yes
IP/NEMA Rating
IP65
Movement Type
Rotary
Primary Scale Minor Graduations
20
Includes Vent Plug
No
Non-Sparking
No
Blowout Safety Back
No
Removable Bezel
No
Compatible Process Media
Air, Noncorrosive Liquid
Gauge Case Material
Stainless Steel
Adjustable Set Points
Yes
Pressure Gauge Type
Differential Pressure Gauge
Maximum Working Static Pressure
1,500 psig
Lens Material
Glass
O-Ring Material
Buna-N
Includes Calibration Certificate
No
Sensor Material
Buna-N
Includes Mounting Hardware
No
Hazardous Location Rating
Not Rated
Process Temperature Range
32 Degrees to 175 Degrees F
Ambient Operating Temperature Range
0 Degrees to 170 Degrees F
Panel Mount Characteristics
3 0.162 in Dia Holes on 3.86 in Dia Bolt Circle
Case Shape
Round
Operating Temperature - Maximum
170 Degrees F
Pressure Measurement - Minimum
0 in wc
Operating Temperature - Minimum
0 Degrees F
IP Rating
IP65
Process Media Temperature - Maximum
175 Degrees F
Pressure Scale Minor Graduations
20
Process Media Temperature - Minimum
32 Degrees F
Number of Switches
0
Pressure Measurement - Maximum
200 in wc
Working Static Pressure - Maximum
1,500 psig
Product Type
Differential Pressure Gauge

Description

Differential Pressure Gauge, Scale Type PressurePressure Range Minor Div. 20 In. WC, Rated Total Pressure 1500 psiFull Scale Accuracy ( Percent) +/-2, Connection Size NPT (In.) 1/4Dial Size (In.) 3-1/2, Ambient Operating Range (F) 0 Degrees To 170 Degrees Includes Instructions, Manufacturers Warranty Length 1 Year
