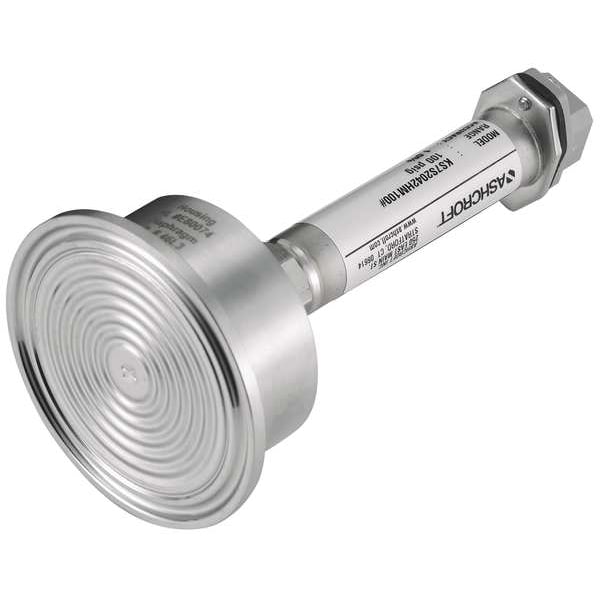

Sanitary Transducer, Range 0 to 30psi

  • Zoro #: G0122437
  • Mfr #: KS7S2042HM30#

$611.58

  • Output: 4 to 20 mA at 12 to 30VDC
  • Manufacturers Warranty Length: 1 yr.
  • Loop Resistance: Dependent on Loop Supply Voltage
See full product details
  • This item ships free.
  • Shipping & Returns
  • Sign up for Zmail and get 15% off your first order

Ashcroft #KS7S2042HM30# Specifications

  • Zoro #: G0122437
  • Mfr #: KS7S2042HM30#
Output: 4 to 20 mA at 12 to 30VDC Manufacturers Warranty Length: 1 yr.
Loop Resistance: Dependent on Loop Supply Voltage Process Connection: 2" Sanitary
Operating Temp. - Transmitter: -20 Degrees to 180 Degrees F Calibration Certificate: -
Process Connection Type - Transmitter: Triclamp Includes: Instructions
Range: 0 to 30 psi Electrical Connections: DIN
Power Required: 9 to 36VDC Wiring Entry - Transmitter: 1/2" FNPT
Wetted Materials - Transmitters: 316L Stainless Steel Features: -
Wetted Materials: 316L Stainless Steel Max. Pressure (PSI): 60
Accuracy - Transmitter: +/-1.00% Item: Pressure Transmitter
Compatible With: Any Process Compatible with 316Stainless Steel Process Connection Size - Transmitter: 2"
Accuracy: +/-1% Output - Transmitter: 4 to 20mA DC
Power Required - Transmitters: 9 to 36VDC For Use With: -
Range Values - Transmitter: 0 to 30 Operating Temp.: -20 To 180 F
Transmitter Type: Pressure Transmitter Thermal Error: +/-.04% per /deg. F from -20 Degrees to 168 Degrees F
Range Units - Transmitter: psi Housing: Stainless Steel
Electrical Connections - Transmitter: 4 Pin Hirschmann Style A DIN 43650-A Connector NEMA Rating: 4x
Country of Origin (subject to change): United States
Feedback Help us improve our product information

Description

Pressure Transmitter, Wetted Materials - Transmitters 316L Stainless Steel, Range Values - Transmitter 0 to 30, Range Units - Transmitter psi, Accuracy - Transmitter +/-1.00 Percent, Electrical Connections - Transmitter 4 Pin Hirschmann Style A DIN 43650-A Connector, Power Required - Transmitters 9 to 36VDC, Process Connection Size - Transmitter 2 In., Process Connection Type - Transmitter Triclamp, Output - Transmitter 4 to 20mA DC, Operating Temp. - Transmitter -20 Degrees to 180 Degrees F
