Shop ASHLAND CONVEYOR

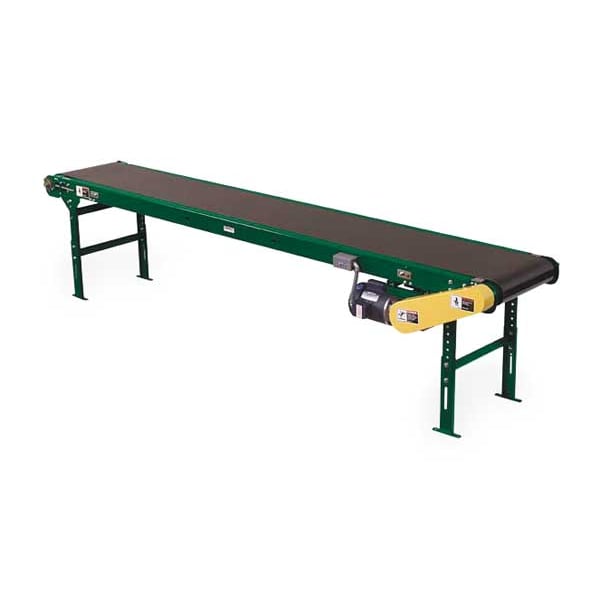

Slider Bed Belt Conveyor, 21 ft L, 22 1/2 in W, 385 lb Load Capacity

  • Mfr # SB400 18B21RE1/2A3I6-60V115M25

  • Zoro # G9821743

product price:
$
7,543.99
/ea
Additional $260.00 delivery surcharge applies per item.
See details

Key Features

Belt Width (In.)
18
Overall Length
21 ft
Maximum Load Capacity
385 lb
Application
Material Handling
Top Surface
Smooth
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
SB400 18B21RE1/2A3I6-60V115M25
Zoro #
G9821743
UPC #
-
Country of Origin
United States

Dimensions

Belt Width (In.)
18
Overall Length
21 ft
Overall Width
22 1/2 in
Overall Length (Ft.)
21
Adjustable Height (In.)
23-1/2 to 35
Adjustable Height - Conveyors
Yes
Min. Height
23 1/2 in
Belt Width
18 in
Bed Width (In.)
22-1/2
Bed Length (Ft.)
20
Max. Height
35 in
Width (In.)
22-1/2
Bed Length
20 ft
Shaft Dia. (In.)
1-3/16
Bed Depth (In.)
4
Bed Height
4 in
Conveyor Frame Width
22 1/2 in
Wire Rope Length
21 ft
Length
21 ft

Details

Item
Belt Conveyor
Maximum Load Capacity
385 lb
Application
Material Handling
Top Surface
Smooth
Belt Type
PVC 120 Smooth Top
Drive Pulley (In.)
4
Belt Conveyor Type
Slider Bed
Motorized
Yes
Conveyor Belt Material
PVC
Power
1/2 hp
Motor Rating
Invertor Duty
Frame Shape
Straight
Legs per Unit
3
Phase
single
Load Capacity (Lb.)
385
Number of Stands Included
3
Frame Material
Steel
Duty Rating
Medium-Duty
HP
1/2
Number of Phases
1
Motor Type
1/2 HP Invertor Duty, 115 VAC Single Phase
Speed
60 fpm
Stand Type
H
Switch
On/Off Pushbutton w/Dial Speed Control
Bed Material
Steel
Voltage
110V AC
Finish
Powder Coated
Belt Speed
Variable Speed Range From 6 to 60 fpm
Frame Finish/Coating
Powder Coated
Bearings
Sealed and Prelubricated with Cast Iron Housings
Adjustable Speed
Yes
Switch Type - Conveyors
On/Off Pushbutton with Dial Speed Control

Description

Belt Conveyor, Slider Bed, Maximum Load Capacity 385 lb, 21 ft Overall Length, 20 ft Bed Length, Steel Bed Material, 22 1/2 in Conveyor Frame Width, PVC, 18 in Belt Width, Top Surface Smooth, Adjustable Speed Yes, 60 fpm Speed, Voltage 110V AC, Number of Stands Included 3
