Shop ASSA ABLOY ACCENTRA

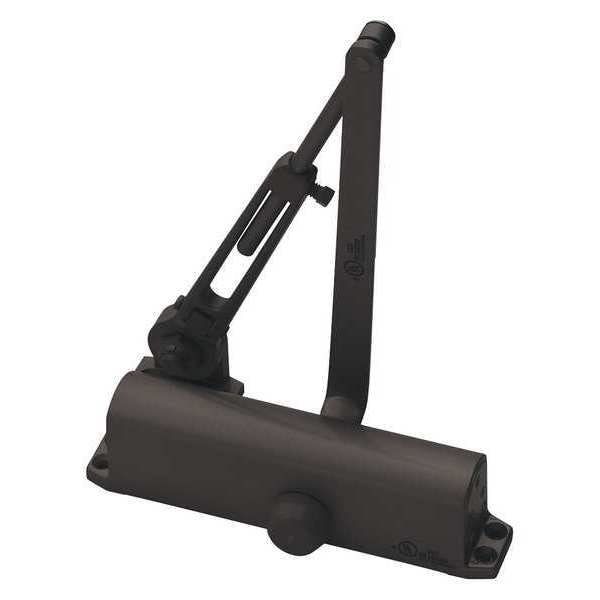

Manual, Hydraulic, GAV 1111, Door Closer, Heavy Duty Interior and Exterior, Bronze

  • Mfr # 1111 x 690 GAV

  • Zoro # G5413217

product price:
$
127.99
/ea
Free Shipping & Returns

Key Features

Closer Mounting Style
Parallel, Regular, Top Frame
Closer Performance
Heavy Duty
Closer Series
GAV 1111
Closer Type
Hold Open
Color
Bronze
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1111 x 690 GAV
Zoro #
G5413217
UPC #
049306853583
Country of Origin
United States

Dimensions

Housing Depth
1 3/4 in
Housing Height
2 5/8 in
Housing Length
9 3/4 in
Spring Size
Adjustable 1 to 4
Exterior Door Width
36 in
Interior Door Width
48 in
Spring Size - Maximum
4
Interior Door Width - Maximum
48 in
Height Between Mounting Holes
3/4 in
Length Between Mounting Holes
9 1/16 in
Exterior Door Width - Maximum
36 in
Spring Size - Minimum
1

Details

Item
Door Closer
Closer Mounting Style
Parallel, Regular, Top Frame
Closer Performance
Heavy Duty
Closer Series
GAV 1111
Closer Type
Hold Open
Color
Bronze
Finish
Dark Bronze Painted
Hand Orientation
Non-Handed
Interior/Exterior
Interior and Exterior
Hydraulic/Pneumatic
Hydraulic
Automatic/Manual
Manual
Material
Aluminum
Mounting Hardware
Included
Standards
ANSI/BHMA A117.1, ANSI/BHMA A156.4, UL and cUL Listed
ADA Compliant
Yes
Projection from Wall
2 7/8 in
Includes
Adjustable Back Check Valve, Closing Speed Valve, Latching Speed Valve
Max. Door Opening
120 Degrees to 180 Degrees
Ligature Resistant
No
Arm Material
Steel
Arm Type
Parallel, Regular
Category Type
Parallel Arm
Door Handing
Non-Handed
Features
Adjustable Backcheck Valve, Adjustable Closing Speed Valve, Auxiliary Door Stop Required, Full Rack and Pinion
Series
1100
For Use With
Interior and Exterior Doors
Mounting Style
Regular, Parallel Arm and Top Jamb
Fire Rating
3 hr
Includes Hardware
Hardware Included
Ligature-Resistant
Not Ligature-Resistant
Projection
2 7/8 in
Operation Style
Manual
Closer Cycles
25,000,000
Spring Type
Adjustable
Product Type
Door Closer
ANSI/BHMA Finish
Dark Bronze Painted
Door Opening - Maximum
110 Degrees
Performance Grade
1
Stop Type
Spring
Compatible Brand
ACCENTRA
UL Fire Rating
UL10C
Interior/Exterior Use
Exterior

Description

Door Closer, GAV 1111 Closer Series, Interior and Exterior, Manual, Hydraulic, Closer Performance Heavy Duty, Closer Type Hold Open, Non-Handed, Ligature Resistant No, Closer Mounting Style Parallel, Regular, Top Frame, Standards ANSI/BHMA A117.1, ANSI/BHMA A156.4, UL and cUL Listed, ADA Compliant Yes, Finish Dark Bronze Painted, Arm Material Steel, Arm Type Parallel, Regular, Color Bronze, Exterior Door Width 36 in
