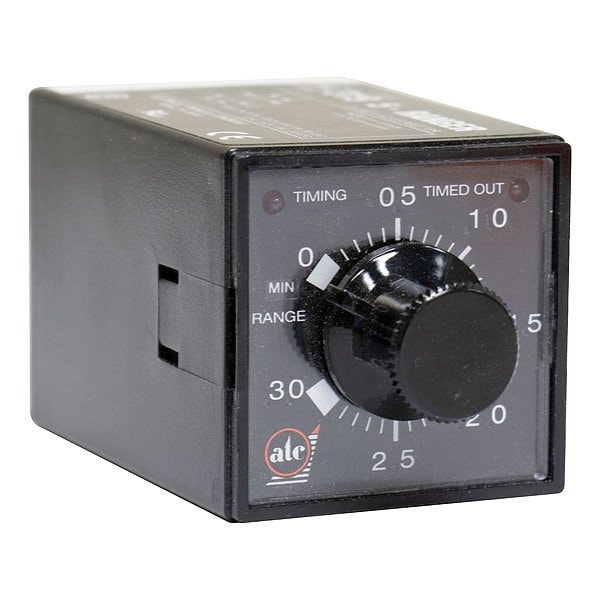

Time Delay Relay, Octal, On Delay, 5 Functions DPDT
Mfr # 3-0319E030F1C
Zoro # G416498092
product price:Â
$
350.99
/ea
Free Shipping & Returns
Key Features
Delay Function
On Delay
Number of Delay Functions
5
Minimum Time Setting
300 msec
Maximum Time Setting
30 min
Base Shape
Octal
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 3-0319E030F1C
- Zoro #
- G416498092
- UPC #
- -
- Country of Origin
- United States
- Item
- Time Delay Relay
- Delay Function
- On Delay
- Number of Delay Functions
- 5
- Minimum Time Setting
- 300 msec
- Maximum Time Setting
- 30 min
- Base Shape
- Octal
- Number of Pins
- 8
- Current Rating
- 7 A
- Contact Form
- DPDT
- Contact Rating (AC)
- 7 A @ 120/240V
- Contact Rating (DC)
- 3 A @ 30V
- Standards
- CE, CSA, cURus E48329, FM Approved
- Adjustment Method
- Dial
- Input Voltage
- 24V AC to 240V AC, 24V DC
- Series
- 319E Series
- Maximum Operating Temperature
- 131 Degrees F
- Adjustment Interface
- Analog
- Weight
- 6 oz
- Minimum Operating Temperature
- 32 Degrees F
- Relay Operation
- Solid State
- Mechanical Operating Durability
- 100,000,000
- Mounting Style
- Plug-In
- Coil Voltage
- 24 to 240V AC, 24V DC
Description
Time-Delay Relay, Adjustment Method Dial, Base Shape Octal, Contact Form DPDT, Contact Rating (AC) 7 A @ 120/240V, Contact Rating (DC) 3 A @ 30V, Current Rating 7 A, Number of Delay Functions 5, Delay Function On Delay, Input Voltage 24V AC to 240V AC, 24V DC, Minimum Time Setting 300 msec, Maximum Time Setting 30 min, Number of Pins 8, Mounting Style Plug-In, Adjustment Interface Analog, Body Depth 3.25 in, Body Height 2 in, Body Width 2 in, Maximum Operating Temperature 131 Degrees F
