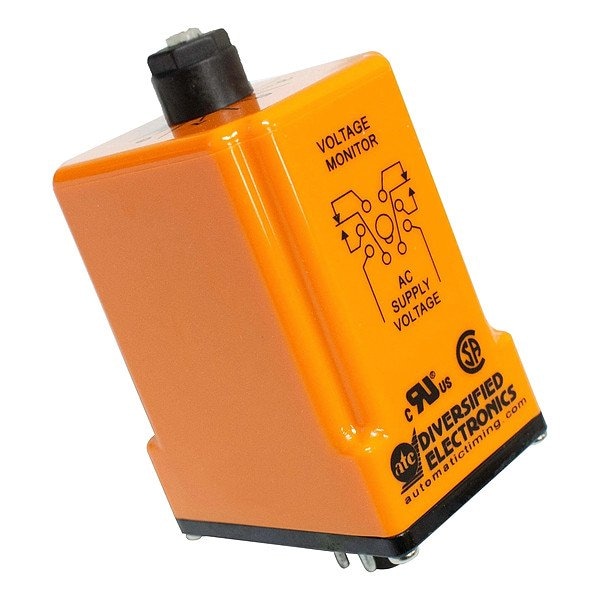

Voltage Sensor Relay
Mfr # UOA110DLA
Zoro # G816497848
product price:Â $246.99
/ea
Free Shipping & Returns
Key Features
Pick Up Range
97 to 130V DC
Drop-Out Range
92 to 125V DC
Minimum Operating Temperature
32 Degrees F
Standards
CSA, cURus E55826
Contact Form
DPDT
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- UOA110DLA
- Zoro #
- G816497848
- UPC #
- -
- Country of Origin
- Taiwan, Province of China
Details
- Pick Up Range
- 97 to 130V DC
- Drop-Out Range
- 92 to 125V DC
- Minimum Operating Temperature
- 32 Degrees F
- Standards
- CSA, cURus E55826
- Item
- Voltage Sensor Relay
- Contact Form
- DPDT
- Maximum Operating Temperature
- 131 Degrees F
- Mounting Style
- Panel Mount Bracket
- Series
- UOA Series
- Current Rating
- 5 A
- Input Voltage
- 110V DC
- Adjustment Method
- Locknut
- Power Consumption
- 3 W
- Monitored Parameters
- Undervoltage
- Contact Rating (AC)
- 211 VA @ 240V AC, 5 A @ 240V AC (Resistive)
- Number of Pins
- 8
- Base Shape
- Octal
Description
Voltage Sensor Relay, Base Shape Octal, Current Rating 5 A, Input Voltage 110V DC, Pick Up Range 97 to 130V DC, Drop-Out Range 92 to 125V DC, Monitored Parameters Undervoltage, Number of Pins 8, Contact Form DPDT, Contact Rating (AC) 211 VA @ 240V AC, 5 A @ 240V AC (Resistive), Mounting Style Panel Mount Bracket, Adjustment Method Locknut, Maximum Operating Temperature 131 Degrees F, Minimum Operating Temperature 32 Degrees F, Power Consumption 3 W
