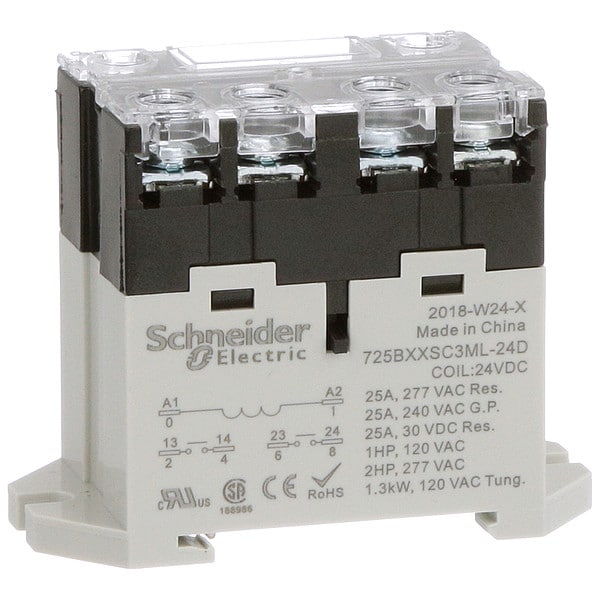

DIN Rail & Top Flange, Enclosed Power Relay, Square, 25 A, 6 Pins, Screw

  • Mfr # 725BXXSC3ML-24D

  • Zoro # G1228701

CAD Available
product price:
$
36.95
/ea

Key Features

CAD Drawing
Mounting Style
DIN Rail & Top Flange
Electrical Connection
Screw
Base Shape
Square
Number of Pins
6
Coil Voltage
24V DC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
725BXXSC3ML-24D
Zoro #
G1228701
UPC #
-
Country of Origin
China
Item
Enclosed Power Relay
Mounting Style
DIN Rail & Top Flange
Electrical Connection
Screw
Base Shape
Square
Number of Pins
6
Coil Voltage
24V DC
Current Rating
25 A
Contact Form
DPST-NO
Contact Rating (AC)
25 A @ 240/277V
Contact Rating (DC)
25 A @ 28/30V
Contact Material
Silver Alloy
Power Consumption - Relay
2.5 W
Hz
50/60
Features
2hp @ 277V AC, LED & Button
Number of Poles
2
Standards
CE Certified, CSA Certified, IEC 60947-1, UL60947-4-1A
Coil Rating
2.5VA, 1.9W
Contact Amp Rating (Resistive)
25A @ 277VAC/30VDC
Input Voltage
19.2 to 26.4V DC
Horsepower @ 240V AC
2 hp
Coil Resistance
300 ohm
Status Indicator
LED Indicator
Electrical Operating Durability
100,000
Operating Current
25 A at 240V AC (General Purpose), 25 A at 240V AC (Resistive Load), 25 A at 277V AC (Resistive Load), 25 A at 28V DC (Resistive Load), 25 A at 30V DC (Resistive Load)
Maximum Operating Temperature
131 Degrees F
IP Rating
IP20
Maximum Switching Voltage
240V, 277V
Dielectric Strength
2,000V AC Between Poles, 4,000V AC Between Coil and Contact
Series
Harmony(TM) 725 Power Series
Motor Rated
Yes
Minimum Operating Temperature
-4 Degrees F
Horsepower @ 120V AC
1 hp
Minimum Switching Current
100 mA
Frequency
50/60 Hz
Weight
4.23 oz
Response Time
30 msec
Push-To-Test Method
Test Button
Mechanical Operating Durability
5,000,000
Power Consumption
1.9 W
CAD Available
Yes
Average Coil Consumption
1.90 W
Product Certifications
UL; CSA; CE
Tightening Torque
10.6...15 lb.in; 1.2...1.7 N.m
Rated Power in HP
1 hp 120 V AC; 2 hp 277 V AC
Connections - terminals
Screw coil terminal M3.5; Screw contact terminal M4
Nominal input voltage
19.2...26.4 V DC
Ambient Air Temperature for Storage
-67 to 212°F (-55 to 100°C)
Series name
Power
Contact Composition
2 NO
Product Range
Harmony Electromechanical Relays
ambient temperature range - operational
-4 to 131°F (-20 to 55°C)
Rated power in W
1.3 kW 120 V tungsten
Type
Power

Description

Enclosed Power Relay, Base Shape Square, Coil Voltage 24V DC, Contact Form DPST-NO, Current Rating 25 A, Electrical Connection Screw Terminal, Number of Pins 6, Status Indicator LED Indicator, Contact Rating (AC) 25 A @ 240/277V, Contact Rating (DC) 25 A @ 28/30V, Horsepower @ 120V AC 1 hp, Horsepower @ 240V AC 2 hp, Mounting Style DIN Rail & Top Flange, Push-To-Test Method Test Button, Body Depth 1.64 in, Body Height 1.3 in, Body Width 2.67 in, Coil Resistance 300 ohm
