ASI UK2.5B Feed Through TB, DIN Rail Screw TB, 6.2mm Wide, UL Ratings 30-12 AWG, 20 Amp, 600 Volt, 25PK
Mfr # ASIUK2.5B
Zoro # G015679137
product price:Â
$
34.69
/pk 25, $1.39/ea
Key Features
Mounting Type
DIN
Housing Color
Gray
Overall Width
0.2 in
Overall Length
3 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- ASIUK2.5B
- Zoro #
- G015679137
- UPC #
- 813101020187
- Country of Origin
- China
- Item
- Terminal Block
- Mounting Type
- DIN
- Housing Color
- Gray
Description

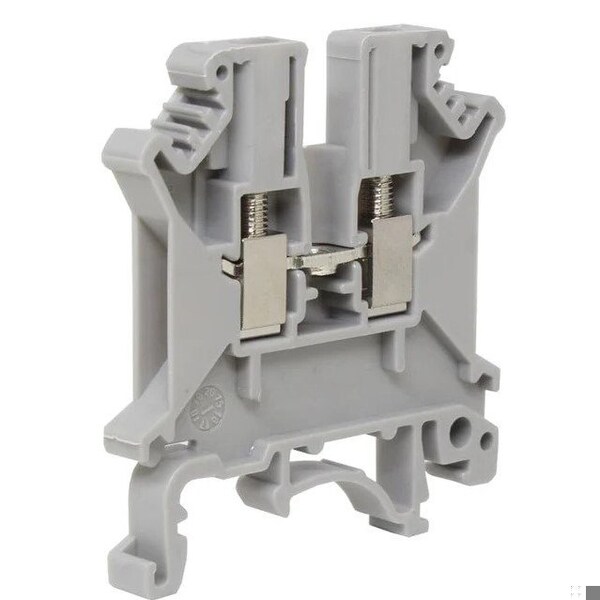

ASI UK2.5B is a DIN rail terminal block that is UL rated 20 Amps at 600 Volts,with a 30 to 12 AWG wire range and is a 6.2 mm wide feed through terminal block. This IEC terminal block has a universal mounting foot for mounting on the standard 35mm DIN rail and on other DIN rail types. The metal clamping bodies in the ASIUK2.5B feed through terminal block are made of a copper alloy that is nickel plated and the screws are tin-plated to provide for ideal protection in any type of environment. The ASI UK2.5B 2 wire DIN terminal block has a universal mounting foot provides that for use in older systems and those today which are using the industry standard 7.5 mm by 35 mm DIN rail. The housing of the ASIUK2.5B is gray,UL94V0 polyamide.
- 20 Amp
- 6.2mm Width
- Accepts 30-12 AWG
- Din Rail Mount
