DIN Rail Relay Module With 8 SPST Relays, 24 Vac/dc, 8 Amp, 240Vac, Space Saving Only 22.5mm Wide
Mfr # XCR81
Zoro # G215679104
product price:Â
$
125.99
/ea
Free Shipping & Returns
Key Features
Width
1 in
Length
4 in
Contact Rating (AC)
8 A @ 250V
Electrical Connection
Plug In
Contact Form
SPDT
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- XCR81
- Zoro #
- G215679104
- UPC #
- 810009768128
- Country of Origin
- Italy
Dimensions
- Width
- 1 in
- Length
- 4 in
Details
- Contact Rating (AC)
- 8 A @ 250V
- Electrical Connection
- Plug In
- Contact Form
- SPDT
- Coil Voltage
- 24V AC/DC
- Mounting Style
- DIN Rail
- Item
- Relay
Description

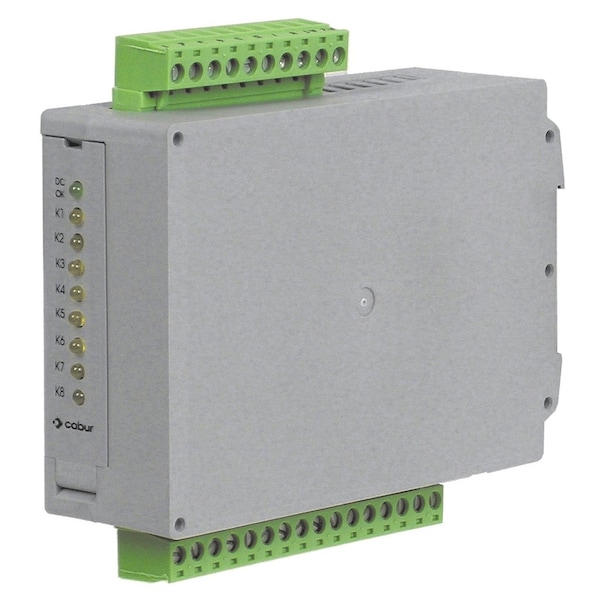

XCR81 is space saving DIN Rail mounted 8 Channel Fixed Relay, 24Vac/dc coil rating, SPDT, and the contact rating is 8 Amp at 250 Vac. This enclosed 8 position din rail relay module has pluggable terminal block terminations and snaps onto a DIN rail for easy installation and maintenance. It accepts 26 to 14 AWG wire. This is a very compact DIN rail relay module with 8 relays as it measures only 108x22.5x119 mm 8.3x0.9x8.7 inches. The DIN rail relay modules are equipped with an inductive kickback diode to prevent damage to sensitive controllers when relays are de-energized. The coils on these din rail relay modules are common together on each relay module to minimize the number of connections and reduce labor and installation cost.
- LED Status Indication
- 8 Channel
- 26 to 14 AWG Wire
- Space Saving
- Din Rail Mount
