Roller/Lever Limit Switch, 50 mm Roller, Adjustable Lever Length, 1NC-1NO Snap Action Contacts, NPT (Discontinued)

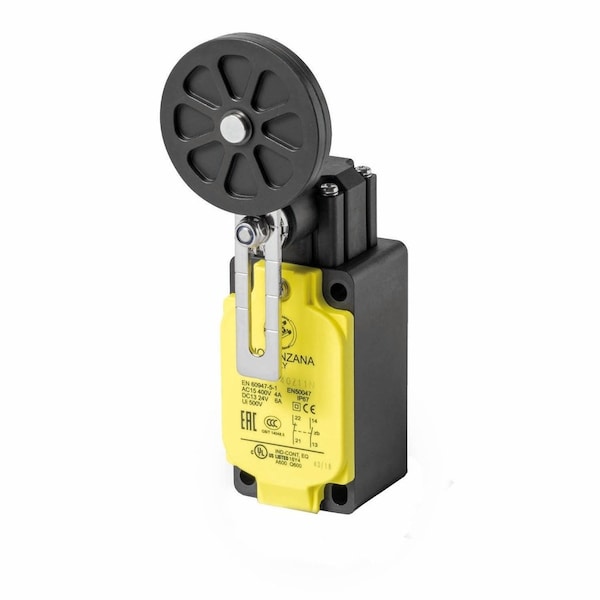

FTNG140-Z11N is a standard size roller lever limit switch with a 50mm diameter rubber roller. It features a variable length lever. It is ideal for use in elevator applications. The limit switch is designed with 1 NC and 1 NO removable Snap Action contacts that allow for convenient and easy wiring of the contact blocks. The flame resistant Thermoplastic housing has an 1/2'' NPT threaded conduit opening at the bottom. The contact cover is hinged and flips down for easy access for wiring. The mounting screws are 30 mm apart at the top and bottom of the housing. The heads are held in place by 4 screws. The FTNG140-Z11N limit switch is cULus listed and has a mechanical life greater than 10 million cycles, and an electrical life greater than 150,000 cycles
