Shop AVENTICS

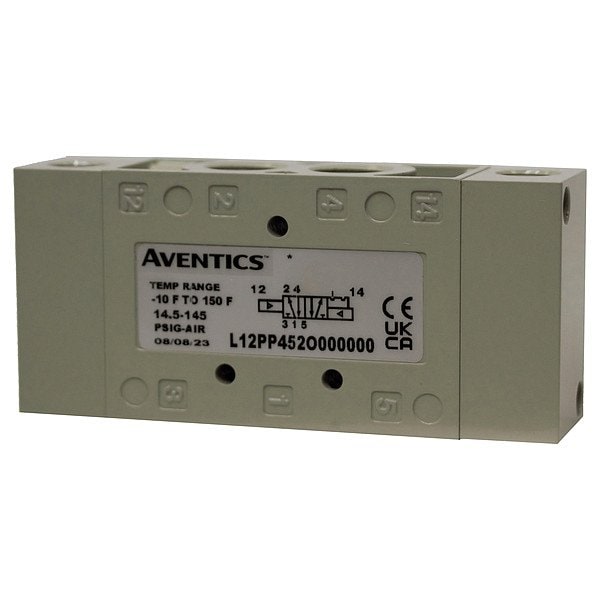

Pilot Air Control Valve, Remote Pilot

  • Mfr # L12PP552O000000

  • Zoro # G309990542

product price:
$
133.99
/ea
Free Shipping & Returns

Key Features

Valve Ways and Positions
4-Way/3-Position
Valve Actuator / Return
Air Pilot
Valve Port Size
1/4 in NPTF
Max. CFM - Valves
46 scfm
Center Position
Open
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
L12PP552O000000
Zoro #
G309990542
UPC #
-
Country of Origin
United States
Valve Ways and Positions
4-Way/3-Position
Valve Actuator / Return
Air Pilot
Max. CFM - Valves
46 scfm
Center Position
Open
Max. Operating PSI
150 psig
Application
Automotive, Bottling, Stamping, Pressing, Tire Manufacturing
Number of Ways
Four-Way
Number of Positions
Three-Position
Max. Temp. Range (F)
-10 Degrees to 150 Degrees F
Item
Pilot Air Control Valve
Coefficient of Volume
1
Valve Type
Spool
Uses
Air, Inert Gas, Vacuum
Pilot Pressure
14.5 psi
Actuator Type
Remote Pilot
Operating Pressure - Maximum
150 psi
Body Style
Inline
Valve Port Connection Type
NPT
Series
L1
Override
Non-Locking
Number of Ports
1
For Media
Air, Inert Gas, Vacuum
Return Action
Spring Center
Operating Temperature - Maximum
150 Degrees F
Number of Pilots
Double Pilot
Pilot Port Connection Type
NPT
Fail Position
Open
Valve Port Connection Gender
Female
Coefficient of Volume (Cv)
1
Operating Temperature - Minimum
-10 Degrees F
Product Type
Pilot Air Control Valve
Flow Rate - Maximum
46 scfm

Description

Pilot Air Control Valve, Valve Ways and Positions 4-Way/3-Position, Valve Actuator / Return Air Pilot, Valve Port Size 1/4 in NPTF, Max. CFM - Valves 46 scfm, Center Position Open, Max. Operating PSI 150 psig, Pilot Pressure 14.5 psi, Max. Temp. Range (F) -10 Degrees to 150 Degrees F, Coefficient of Volume 1, Length (In.) 1 5/8 in, Width (In.) 22/25 in, Height (In.) 3 5/16 in, Uses Air, Inert Gas, Vacuum
