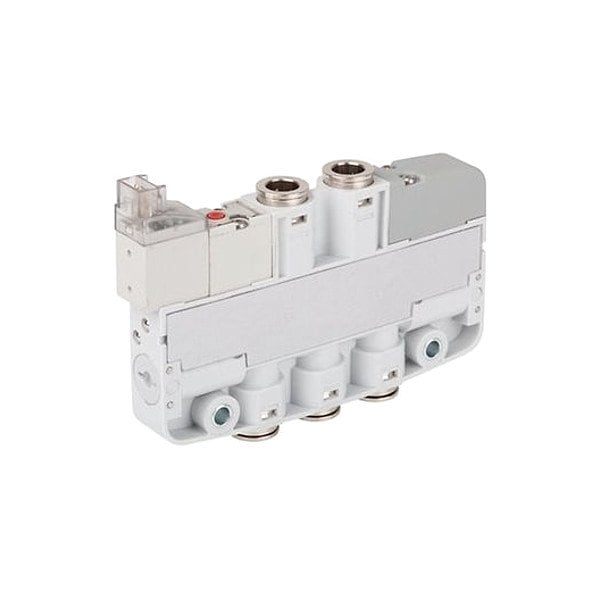

Solenoid Air Con Valve, Five-Way, 145 psi
- Mfr # R422103560
- Zoro # G116664438
product price:Â
$
147.99
/ea
Free Shipping & Returns
Key Features
Duty Cycle
Continuous
Overall Length
79 5/32 mm
Standards
DIN EN 61140 Class III, Generic Emission Standard in Accordance EN 61000-6-4:2002, Generic Immunity Standard in Accordance IEC 61000-6-2:2005
Seal Material
Polyurethane
Operating Temperature - Maximum
50 Degrees C
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- R422103560
- Zoro #
- G116664438
- UPC #
- -
- Country of Origin
- France
Dimensions
- Overall Length
- 79 5/32 mm
- Overall Height
- 53 mm
- Inlet Port Connection Size
- 6 mm
- Exhaust Port Connection Size
- 6mm
- Overall Width
- 10 13/16 mm
- Wire Rope Length
- 79 5/32 mm
- Length
- 79 5/32 mm
Description
Directional Control Valve, Voltage 24V DC, Center Position Not Applicable, ISO Class Not Applicable, Body Style Body-Ported, Pilot Pressure 3 bar, Power Consumption 0.8 W, Override Non-Locking, Overall Height 53 mm, Overall Length 79 5/32 mm, Overall Width 10 13/16 mm, Standards DIN EN 61140 Class III, Generic Emission Standard in Accordance EN 61000-6-4:2002, Generic Immunity Standard in Accordance IEC 61000-6-2:2005
