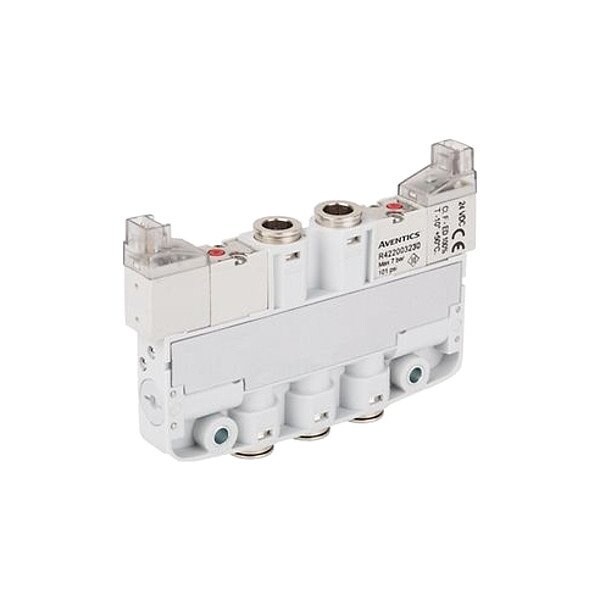

Solenoid Air Con Valve, Three-Way, 145 psi

  • Mfr # R422103580

  • Zoro # G916664423

product price:  $234.99
/ea
Free Shipping & Returns

Key Features

Pilot Type
Internal Pilot
Pilot Port Connection Gender
Female
Series
LS04-AF
Duty Cycle
Continuous
Includes Solenoid Coil
Solenoid Coil Included
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
R422103580
Zoro #
G916664423
UPC #
-
Country of Origin
France

Dimensions

Overall Width
10 13/16 mm
Exhaust Port Connection Size
6mm
Overall Length
82 3/32 mm
Inlet Port Connection Size
6 mm
Overall Height
53 mm

Details

Item
Directional Control Valve
Pilot Type
Internal Pilot
Pilot Port Connection Gender
Female
Series
LS04-AF
Duty Cycle
Continuous
Includes Solenoid Coil
Solenoid Coil Included
Return Action
Spring Return
Power Consumption
0.8 W
Pilot Pressure
3 bar
Vacuum Rating
Not Vacuum Operable
Product Type
Solenoid Air Control Valve
Standards
DIN EN 61140 Class III, Generic Emission Standard in Accordance EN 61000-6-4:2002, Generic Immunity Standard in Accordance IEC 61000-6-2:2005
Coefficient of Volume (Cv)
0.3
Exhaust Port Connection Type
Push-On
Number of Positions
Two-Position
Valve Action
Normally Closed
Application
Industrial
Actuator Type
Double Solenoid
Operating Temperature - Minimum
-10 Degrees C
Operating Pressure - Maximum
7 bar
Body Material
Thermoplastic
Operating Pressure - Minimum
3 bar
Flow Rate - Maximum
310 lpm
Seal Material
Polyurethane
Inlet Port Connection Gender
Female
Operating Temperature - Maximum
50 Degrees C
Response Time
12 msec
Number of Ports
5
Voltage
24V DC
Body Features
Double
For Media
Compressed Air
Body Style
Body-Ported
Electrical Connection Type
Plug-In
Number of Ways
Four-Way
Override
Non-Locking
Valve Type
Spool

Description

Directional Control Valve, Voltage 24V DC, Center Position Not Applicable, ISO Class Not Applicable, Body Style Body-Ported, Pilot Pressure 3 bar, Power Consumption 0.8 W, Override Non-Locking, Overall Height 53 mm, Overall Length 82 3/32 mm, Overall Width 10 13/16 mm, Standards DIN EN 61140 Class III, Generic Emission Standard in Accordance EN 61000-6-4:2002, Generic Immunity Standard in Accordance IEC 61000-6-2:2005

Restrictions

This is a restricted item in the USA. It cannot be used for potable water applications.
