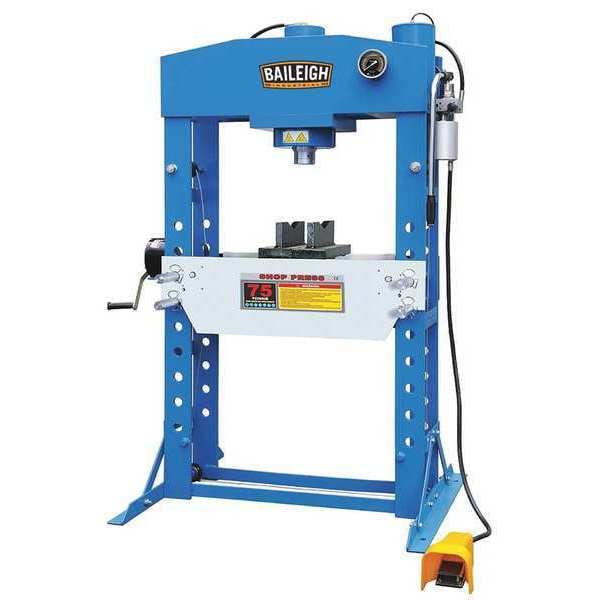

Hydraulic Press, 75 t, Air Pump

  • Mfr # HSP-75A

  • Zoro # G2222389


product price: $6,929.00
/ea
Additional $205.00 delivery surcharge applies per item.
See details

Key Features

Frame Capacity
75 ton
Frame Type
H-Frame
Cylinder Stroke
9 3/4 in
Pump Type
Air
Base Length
44 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HSP-75A
Zoro #
G2222389
UPC #
-
Country of Origin
China

Dimensions

Base Length
44 in
Base Width
24 in
Overall Height
83 in
Total Width
43"
Bed Height
2-1/2 to 34-1/2"
Working Width
31-1/2"
Total Height
20"
Working Height
2-1/2 to 34-1/2"
Overall Width
43 in
Ram Size
3 in
Base Depth
44 in
Press Bed Depth
9 3/4 in
Press Bed Width
31 1/2 in

Details

Frame Capacity
75 ton
Frame Type
H-Frame
Cylinder Stroke
9 3/4 in
Pump Type
Air
Application
Pressing Bearings
Item
Hydraulic Press
Ram Travel
16"
Includes
V-Block
Pump
Yes
Cylinder
Movable
Features
Automatic Cylinder Return;Foot Pedal Control;Movable (Left-Right) Cylinder;Welded Construction
Capacity
75 ton
Material - Machining
Steel
Distance Between Uprights
31 1/2 in
Max. Ram-to-Table Distance
34.8 in
Pressure
75 tons/123 psi
Min. Ram-to-Table Distance
6.6900 in
Stroke
9.8 in
Operating Pressure
123 psi
Required Air Pressure - Minimum
90 psi
Operation
Air
Frame Material
Steel
Pump Model Number
Yes
Required Air Pressure - Maximum
115 psi
Manufacturer Warranty
1 yr
Ram-to-Table Distance - Maximum
34 3/4 in
Ram-to-Table Distance - Minimum
6 3/4 in

Description

Hydraulic Press, Pump Type Air, Frame Type H-Frame, Frame Capacity 75 ton
