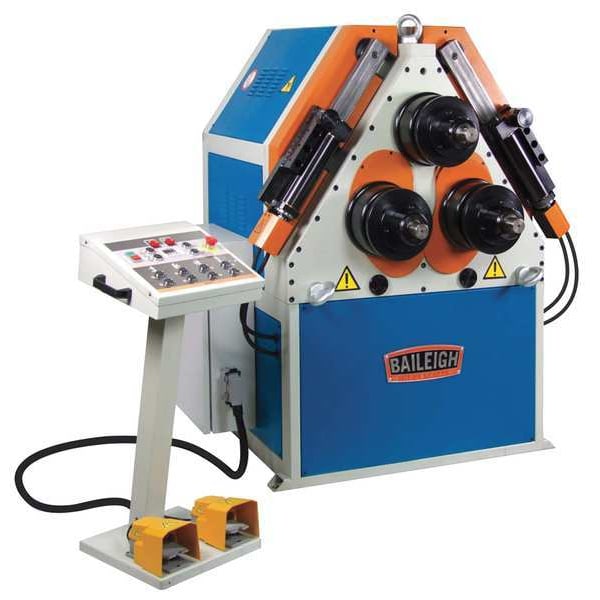

Baileigh Industrial Metal Bender, Hydraulic, Metal R-H85 - main

Metal Bender, Hydraulic, Metal

  • Mfr # R-H85

  • Zoro # G2239609

product price: $54,729.99
/ea
Item requires special delivery charges. A $550.00 per item surcharge will be applied.

Key Features

Type
Hydraulic
Outside Dia. Tubing (In.)
4 in
Bend Angle (Deg.)
0 to 360
Construction
Metal
Application
For Roll Bending
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
R-H85
Zoro #
G2239609
UPC #
19907415756
Country of Origin
Portugal

Dimensions

Outside Dia. Tubing (In.)
4 in
Outside Dia. Tubing (mm)
101 mm
Tubing Outside Diameter
4 in

Details

Item
Metal Bender
Type
Hydraulic
Bend Angle (Deg.)
0 to 360
Construction
Metal
Application
For Roll Bending
Handle Type
Foot Pedal
Markings
Digital Read Out mm Scale
Features
3 Rolls Driven by Industrial-Grade Hydraulic Transmission., Baileigh Covers this Tubing Roller with a 1-Year Parts Warranty and Lifetime Technical Support by Phone., Bends upto 4 in Round Tube, 3 in Schedule 40 Pipe, and 3.375 in X 3.375 in X .25 in Angle Iron., Double-Pinch Design Consists of 1 Fixed Top Roll Plus 2 Bottom Rolls Moved by Independent Hydraulic Cylinders., Hydraulic Encoders Communicate Exact Roll Positioning to Integrated Digital Readout Programmers, Making Repeatability a Cinch., Hydraulic Lateral Guide Rolls Prevent the Material from Twisting and Correct Bend Angles., Runs on 220-Volt 3-Phase Power., We Bolt and Weld the Heavy Steel Plate Frame for Structural Strength So that it Won't Flex Even at Full Capacity., You can Control All Machine Movement of the Machine from the Podium-Mounted Operator Panel with Attached Foot Pedal
Power Source
Electric
Bend Type Markings
Digital Read Out mm Scale
Bend Angle - Minimum
0 Degrees
Material
Metal
Bend Angle - Maximum
360 Degrees

Description

Metal Bender, Bend Type Markings Digital Read Out mm Scale, Tubing Outside Diameter 4 in, Bend Angle - Minimum 0 Degrees , Bend Angle - Maximum 360 Degrees , Application For Roll Bending
