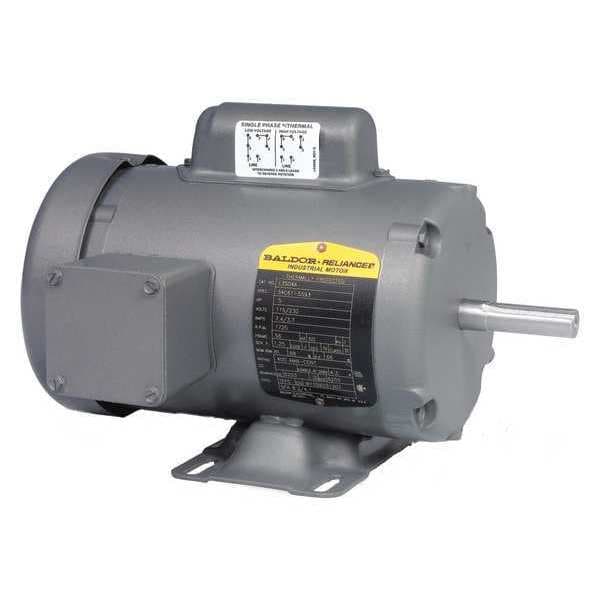

Capacitor-Start General Purpose Motor, 1/12 hp HP, 115V AC, 230V AC Voltage, 42 Frame
Mfr # L3351
Zoro # G7065445
product price:Â
$
401.99
/ea
Free Shipping & Returns
Key Features
Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
Rigid Base
HP
1/12 hp
RPM Range
1,701-1,800
Voltage
115/230V AC
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- L3351
- Zoro #
- G7065445
- UPC #
- 781568100011
- Country of Origin
- United States
Dimensions
- Shaft Dia.
- 3/8 in
- Overall Length
- 9 9/16 in
- Shaft Length
- 1 1/8 in
- Length Less Shaft
- 8 7/16 in
- Frame Size
- 42
- Shaft Diameter
- 3/8 in
- Wire Rope Length
- 9 9/16 in
- Length
- 9 9/16 in
Description
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 1/12 hp HP, Nameplate RPM 1,800 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 1.0 A, 42 Frame, Usable @ 208V Usable at 208V, Hz 60 Hz, Motor Service Factor 1.4, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal
