Shop CENTURY

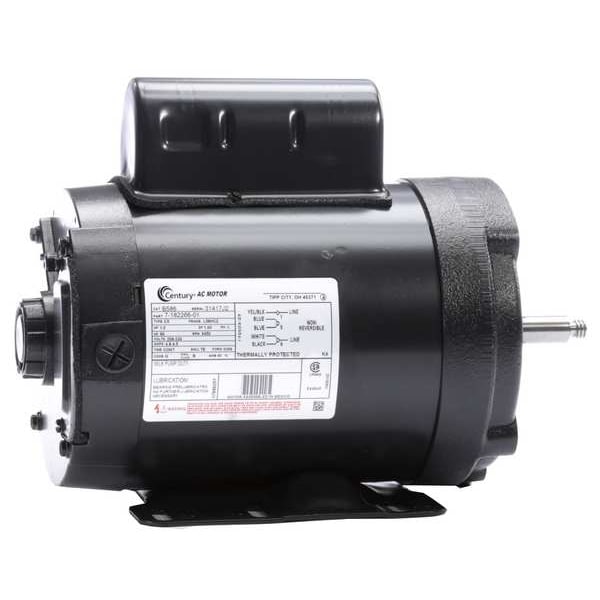

Pump Motor, Permanent Split Capacitor, 1 HP, 208-230V AC, 3,450 Nameplate RPM, L56HCZ Frame

  • Mfr # B586

  • Zoro # G100722830

product price:
$
480.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Permanent Split Capacitor
Phase
Single
HP
1 hp
RPM Range
3,001-3,600
Voltage
208-230V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
B586
Zoro #
G100722830
UPC #
786674012548
Country of Origin
Mexico

Dimensions

Length Less Shaft
10 1/8 in
Overall Length
12 7/16 in
Shaft Dia.
1/2 in
Shaft Length
2 5/16 in
Bolt Circle Dia.
5 7/8 in
Wire Rope Length
12 7/16 in

Details

Item
Farm Duty Motor
Motor Design
Permanent Split Capacitor
Phase
Single
HP
1 hp
RPM Range
3,001-3,600
Voltage
208-230V AC
Frame
56HCZ
Motor Service Factor
1
Motor Thermal Protection
Auto
Motor Enclosure Design
Totally Enclosed Non-Ventilated
Nameplate RPM
3,450 RPM
Motor Application
Agriculture
Motor Frame Material
Steel
Motor Mounting Type
C-Face, Rigid Base
Motor Sub Application
Milk Pump
Motor Shaft Design
Threaded
Motor Shaft Rotation
CWSE
Standards
CSA Certified, UL Recognized
Motor Bearings
Ball
Max. Ambient Temp.
40 Degrees C
Capacitor Required
Capacitor Included
Full Load Amps
4.8-4.5 A
Item - Farm Duty Motors
Milk Pump Motor
Voltage Compatibility
115/208-230V AC, 200-230V AC, 208-220/440V AC, 208-230/277V AC, 208-230/440V AC, 208-230/460V AC, 208-230V AC, 208-240V AC
Hz
60 Hz
No. of Speeds
1
Weight
39 lb
Duty Cycle
Continuous
Usable @ 208V
Usable at 208V
Usable @ 200V
Not Usable at 200V
Ins. Class
B

Description

Farm Duty Motor, Single Phase, Motor Design Permanent Split Capacitor, 1 hp HP, Nameplate RPM 3,450 RPM, No. of Speeds 1, Voltage 208-230V AC, Full Load Amps 4.8-4.5 A, 56HCZ Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CWSE, Motor Enclosure Design Totally Enclosed Non-Ventilated
