Shop BALDOR-RELIANCE

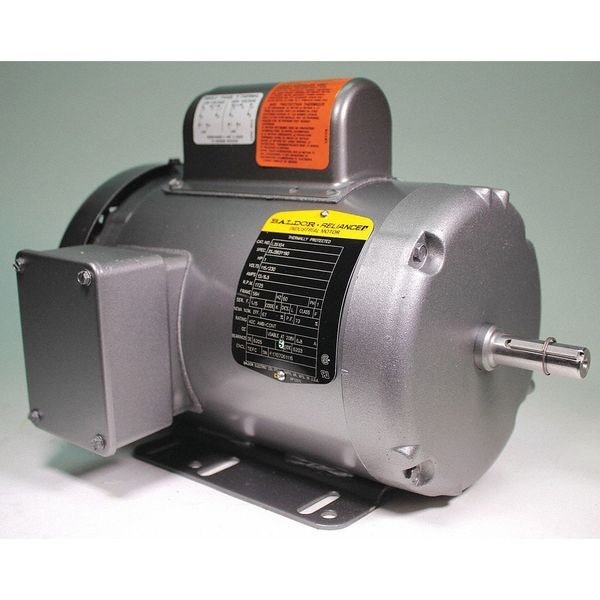

Capacitor-Start/Run General Purpose Motor, 1 hp HP, 115/230V AC Voltage, 56H Frame

  • Mfr # L3510A

  • Zoro # G8112185

product price:
$
887.99
/ea
Free Shipping & Returns

Key Features

Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
Rigid Base
HP
1 hp
RPM Range
1,701-1,800
Voltage
115/230V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
L3510A
Zoro #
G8112185
UPC #
781568100424
Country of Origin
United States
Item
General Purpose Motor
Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
Rigid Base
HP
1 hp
RPM Range
1,701-1,800
Voltage
115/230V AC
Frame
56H
Motor Thermal Protection
Auto
Motor Service Factor
1.15
No. of Speeds
1
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
Motor Application
General Purpose
Nameplate RPM
1,800 RPM
Motor Frame Material
Steel
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Design
Capacitor-Start/Run
Standards
CSA, UR
Includes
Conduit Box
RPM Group
1701-1800
Nominal Efficiency
67 %
Max. Ambient Temp.
40 Degrees C
Frame Material
Steel
CC Number
CC031A
Hz
60 Hz
Full Load Amps
6.5 A
Duty
Continuous
Motor Bearings
Ball
Ins. Class
F
Phase
Single
Inverter Rated
Not Inverter Rated
NEMA Design
L
Usable @ 208V
Usable at 208V
Weight
40 lb
Usable @ 200V
Not Usable at 200V
Duty Cycle
Continuous
Number of Wires
7
Inverter Rating
Not Inverter Rated
Product Type
General Purpose Motor
Manufacturers Warranty
2 yr
Bearing Type
Ball
Insulation Class
F
Efficiency Rating
High Efficiency (IE2)
Full Load Current @ 60 Hz
6.5 A
Nameplate Service Factor @ 60 Hz
1.15
Ambient Temperature - Maximum
40 Degrees C
Number of Speeds
1
Motor Enclosure Type
Totally Enclosed Fan Cooled
Shaft Design
Keyed
Application
General Purpose
Frequency
60 Hz
NEMA Design Class
L

Description

General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 1 hp HP, Nameplate RPM 1,800 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 6.5 A, 56H Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection Auto, Duty Cycle Continuous, Ins. Class F, NEMA Design L, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW
