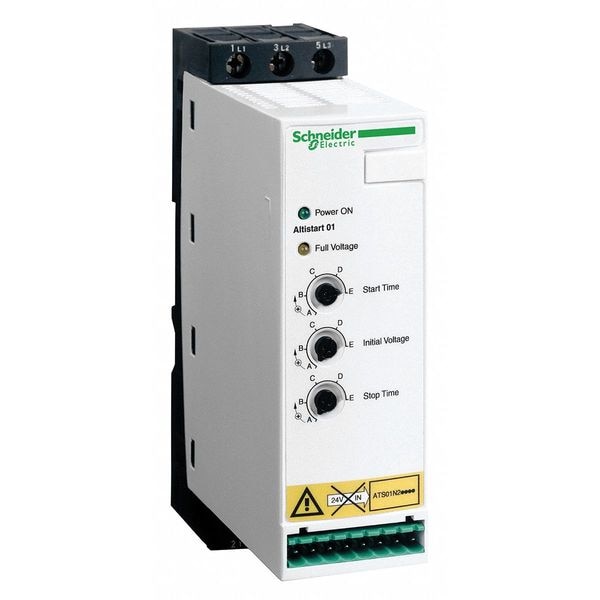

Schneider Electric Soft Start, 208-230VAC, 22A, 3 Phase ATS01N222LU - main

Soft Start, 208-230VAC, 22A, 3 Phase

  • Mfr # ATS01N222LU

  • Zoro # G3529181

product price:  $269.99
/ea
Free Shipping & Returns

Key Features

Phase
Three
Input Voltage
200 to 240V AC
With Bypass / No Bypass
With Bypass
HP @ 3 Phase - 208V
5 hp
IP Rating
20
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
ATS01N222LU
Zoro #
G3529181
UPC #
785901612391
Country of Origin
Germany

Dimensions

Depth
4.45 in
Width
1.77 in
Height
6.06 in
Overall Width
1.77 in
Overall Depth
5.16 in
Overall Height
6.06 in

Details

Phase
Three
Input Voltage
200 to 240V AC
With Bypass / No Bypass
With Bypass
HP @ 3 Phase - 208V
5 hp
IP Rating
20
Includes
LED display two: "Power ON" and "Full Voltage" (up to speed)
Display
None
Stop Time
1 to 10 sec
Control Voltage
24V DC
Ramp Time
1 to 10 sec.
Output Voltage
200 to 240V AC
HP @ 3 Phase - 240V
5 to 7 1/2
Item
Soft Start
Starting Torque
30% to 80%
Enclosure Rating
IP20, NEMA 1
Output Current
22 A
Application
Asynchronous Motors
Start Type
Voltage Ramp Start
Standards
ASME A17.5, B44.1-96, C-tick, CCC, CSA Certified, EN/IEC 60947-4-2, GOST, UL Listed
HP @ 3 Phase - 230V
5 to 7-1/2
Frequency
50/60 Hz
Output Power
5 hp @ 3 Phase, 200 to 240V AC, 7.5 hp @ 3 Phase, 200 to 240V AC
Type
Dial Control

Description

Soft Start, Input Voltage 200 to 240V AC, Output Current 22 A, Output Voltage 200 to 240V AC, 5 hp @ 3 Phase, 200 to 240V AC, 7.5 hp @ 3 Phase, 200 to 240V AC, Control Voltage 24V DC, IP20, NEMA 1
