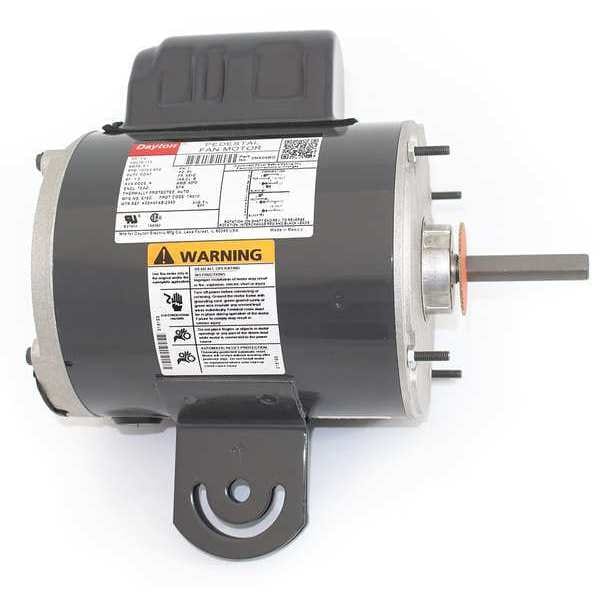

Pedestal Fan Motor, 1/4 hp

  • Mfr # 3M504

  • Zoro # G2548743

product price:
$
205.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Permanent Split Capacitor
Phase
Single
HP
1/4
RPM Range
1,001-1,100
No. of Speeds
2
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
3M504
Zoro #
G2548743
UPC #
190735291856
Country of Origin
Multiple

Dimensions

Body Dia.
5 5/8 in
Shaft Dia.
1/2 in
Overall Length
10 3/16 in
Shaft Length
2 1/2 in
Frame Size
48YZ
Shaft Diameter
1/2 in
Body Diameter
5.6 in
Wire Rope Length
10 3/16 in
Length
10 3/16 in

Details

Item
Pedestal Fan Motor
Motor Design
Permanent Split Capacitor
Phase
Single
HP
1/4
RPM Range
1,001-1,100
No. of Speeds
2
Voltage
115V AC
Motor Shaft Rotation
CW/CCW
Frame
48YZ
Motor Enclosure Design
Totally Enclosed Air-Over
Motor Bearings
Ball
Motor Application
HVAC/R
Full Load Amps
3.1 A
Standards
CSA Certified, UL Recognized
Motor Thermal Protection
Auto
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Ins. Class
B
Max. Ambient Temp.
40 Degrees C
Motor Shaft Design
Flat
Motor Service Factor
1
10 Ft. Cord and Pull Chain Switch
No
Application
Air Circulators where Motor is Mounted Directly to Fan Column, Also Used on Exhaust Fans, Unit Heaters and Other Air-moving Uses
Capacitor Required
Capacitor Included
Nameplate RPM
1,075
Hz
60 Hz
Ambient Temperature
40 Degrees C
Duty
Continuous
Motor Mounting Type
Yoke
Motor Sub Application
Pedestal Fan
Duty Cycle
Continuous
Motor Mounting Position
Horizontal
Insulation Class
B
Sub Application
Pedestal Fan
Bearing Type
Ball
Shaft Design
Flat
Ambient Temperature - Maximum
40 Degrees C
Nameplate Service Factor @ 60 Hz
1
Full Load Current @ 60 Hz
3.1 A
Motor Enclosure Type
Totally Enclosed Air-Over
Frequency
60 Hz
Product Type
Pedestal Fan Motor
Drive Type
Direct Drive

Description

Pedestal Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/4 HP, Nameplate RPM 1,075, No. of Speeds 2, Voltage 115V AC, 3.1 A Full Load Amps, 48YZ Frame, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Position Horizontal, Shaft Length 2 1/2 in, Shaft Dia. 1/2 in
