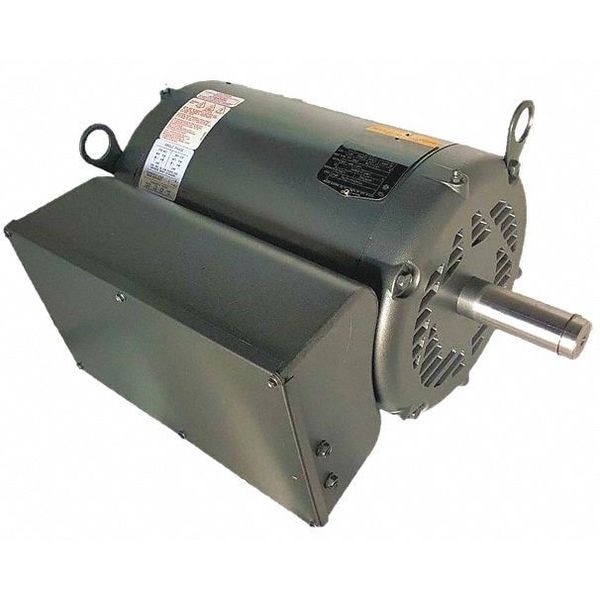

Capacitor-Start/Run General Purpose Motor, 10 hp HP, 230V AC Voltage, 215T Frame
Mfr # L1512T
Zoro # G8419546
product price:Â $2,714.99
/ea
Item requires special delivery charges. A $130.00 per item surcharge will be applied.
Key Features
Motor Enclosure Design
Open Drip Proof
Motor Mounting Type
Rigid Base
HP
10 hp
RPM Range
1,701-1,800
Voltage
230V AC
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
L1512T
Zoro #
G8419546
UPC #
781568101728
Country of Origin
United States
Dimensions
Shaft Length
3 3/8 in
Shaft Dia.
1 3/8 in
Overall Length
17 7/16 in
Manufacturers Warranty Length
2 yr
Length Less Shaft
14 1/16 in
Description
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 10 hp HP, Nameplate RPM 1,800 RPM, No. of Speeds 1, Voltage 230V AC, Full Load Amps 39.0 A, 215T Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design L, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base
