Shop DAYTON

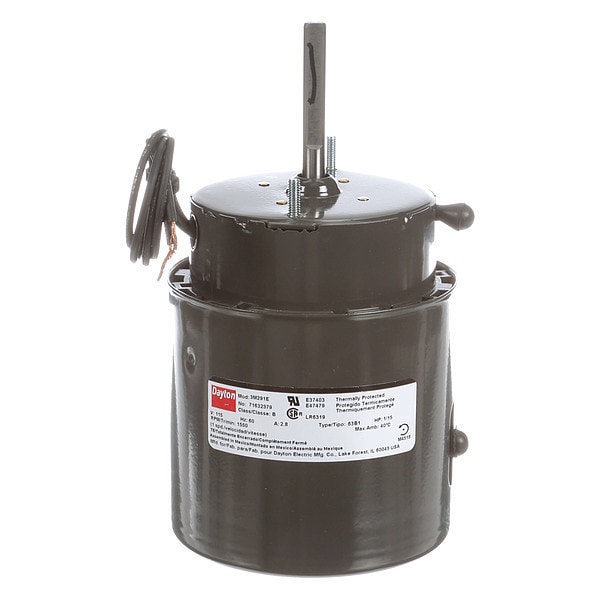

HVAC Motor, 1/15 HP, 1550 rpm, 115V, 3.3

  • Mfr # 71632379M

  • Zoro # G1234545

product price:
$
113.99
/ea
Free Shipping & Returns

Key Features

Voltage
115V AC
Nameplate RPM
1,550
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Number of Speeds
1
HP
1/15
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
71632379M
Zoro #
G1234545
UPC #
00190735291696
Country of Origin
Mexico

Dimensions

Length Less Shaft
4 1/2 in
Body Dia.
4 in
Cord Length
12 in
Shaft Length
2 3/8 in
Shaft Dia.
5/16 in
Overall Length
7 in
Shaft Diameter
5/16 in
Frame Size
3.3
Body Diameter
4 in
Wire Rope Length
7 in
Length
7 in

Details

Voltage
115V AC
Nameplate RPM
1,550
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Number of Speeds
1
HP
1/15
RPM Range
1,501-1,600
Duty
Continuous
Motor Mounting Type
Ring/Stud
Motor Bearings
Sleeve
Standards
CSA Certified, UL Recognized
Max. Ambient Temp.
40 Degrees C
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Motor Design
Shaded Pole
Mounting Stud Location
2/Shaft End
Stud/Base Mtg. Pattern
2-7/8 in
Motor Shaft Rotation
CCWSE
Mounting Pattern
2-7/8
Item
HVAC Motor
No. of Speeds
1
Frame
3.3
Number of Shafts
1
Application
OEM and Replacement Use In A Wide Variety of Fan and Blower
Full Load Amps
2.3 A
Phase
Single
Motor Service Factor
1
Hz
60 Hz
Ins. Class
B
Motor Application
HVAC/R
Motor Sub Application
Direct Drive Fan/Blower
Motor Shaft Design
Flat
Motor Thermal Protection
Auto
Capacitor Required
Capacitor Not Required
Usable @ 200V
Not Usable at 200V
Duty Cycle
Continuous
Mounting Stud Pattern
2 7/8 in
Motor Mounting Position
All Angle
Usable @ 208V
Not Usable at 208V
Mounting
Stud
Type
OEM Replacement
Wattage
49 W
Drive Type
Direct Drive
Insulation Class
B
Full Load Current @ 60 Hz
2.3 A
Motor Enclosure Type
Totally Enclosed Fan Cooled
Frame Material
Steel
Frequency
60 Hz
Bearing Type
Sleeve
Nameplate Service Factor @ 60 Hz
1
Sub Application
General Purpose
Ambient Temperature - Maximum
40 Degrees C
Shaft Design
Flat

Description

HVAC Motor, Single Phase, Motor Design Shaded Pole, 1/15 hp HP, Nameplate RPM 1,550 RPM, No. of Speeds 1, Voltage 115V AC, 2.3 A Full Load Amps, 3.3 Frame, Output Watts 49 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CCWSE, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type Stud
