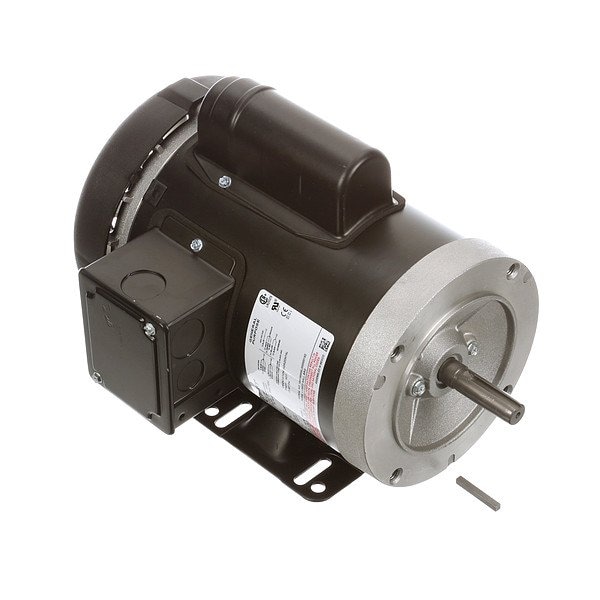

Capacitor-Start General Purpose Motor, 1 hp HP, 56HC Frame, 115/208-230V AC Voltage

  • Mfr # C830V1

  • Zoro # G811930722

product price:
$
683.99
/ea
Free Shipping & Returns

Key Features

Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
C-Face, Rigid Base
HP
1 hp
RPM Range
1725
Voltage
115/208-230V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
C830V1
Zoro #
G811930722
UPC #
786674074775
Country of Origin
Mexico

Dimensions

Shaft Dia.
5/8 in
Overall Length
13 3/16 in
Shaft Length
1 7/8 in
Length Less Shaft
11 1/4 in
Wire Rope Length
13 3/16 in
Frame Size
56HC
Shaft Diameter
5/8 in
Length
13 3/16 in

Details

Item
General Purpose Motor
Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
C-Face, Rigid Base
HP
1 hp
RPM Range
1725
Voltage
115/208-230V AC
Frame
56HC
Motor Thermal Protection
None
Motor Service Factor
1.15
No. of Speeds
1
Voltage Compatibility
115/208-230 V
Motor Application
General Purpose
Nameplate RPM
1,725 RPM
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Motor Shaft Rotation
CCWSE
Motor Design
Capacitor-Start
Standards
CE, CSA Certified, UL Listed
Motor Bearings
Ball
Hz
60 Hz
Phase
Single
Max. Ambient Temp.
40 Degrees C
Duty Cycle
Continuous
Full Load Amps
14.0/7.0-6.8 A
Ins. Class
B
Usable @ 200V
Not Usable at 200V
Nominal Efficiency
72 %
Weight
25 lb
Usable @ 208V
Usable at 208V
Shaft Design
Keyed
Mounting Position
Horizontal
Application
General Purpose
Efficiency Rating
Standard Efficiency (IE1)
Insulation Class
B
Bearing Type
Ball
Product Type
General Purpose Motor
Motor Enclosure Type
Totally Enclosed Fan Cooled
Frame Material
Steel
Nameplate Service Factor @ 60 Hz
1.15
Full Load Current @ 60 Hz
14.0/7.0-6.8 A
Ambient Temperature - Maximum
40 Degrees C
Frequency
60 Hz
Number of Speeds
1

Description

General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 1 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 14.0/7.0-6.8 A, 56HC Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CCWSE
